59896776 UP15-29SU/LC Non-Submersible Circulator Pump 115V, 1/8 HP, 1-1/4" Union NPSM, Canned Rotor Pump with Copper Construction, for G-rundfos UP15-29SU/LC
Product details
| Management number | 229305612 | Release Date | 2026/05/31 | List Price | US$48.00 | Model Number | 229305612 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 【Replacement Part Number】: Non Submersible Circulation Pump Replace 59896776 UP15-29SU/LC.
- 【High Quality】: The pump is canned rotor type, pump and motor form an integral unit without shaft seal and with only two gaskets for sealing; Made from copper, it uses carbon axial bearings, ceramic shaft and radial bearings with a corrosion-resistant composite PES impeller. It has a 1-1/4" union connection (NPSM) and a 5.87" port-to-port length.
- 【Specification】: Supply Voltage: 115V; Rated Power : 1/8 HP; Number of poles: 2 Max; power input: 87W; Main frequency: 60 HZ; Rated voltage: 1 x 115V; Current in speed 3: 0.42-0.75A; Capacitor size - run: 10 µF/180V; Insulation class (IEC 85): F.

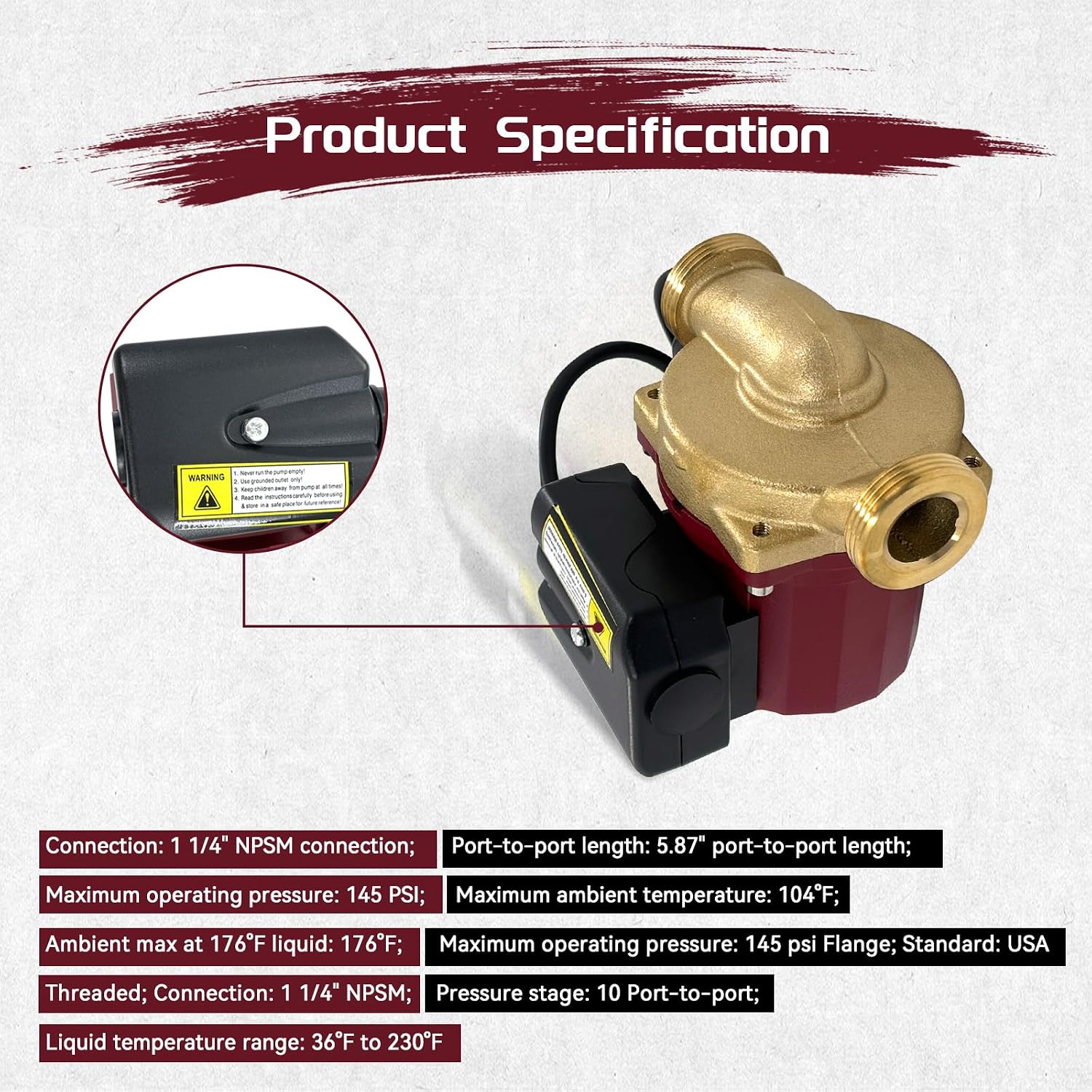

- 【Specification】: Connection: 1 1/4" NPSM connection; Port-to-port length: 5.87" port-to-port length; Maximum operating pressure: 145 PSI; Maximum ambient temperature: 104°F; Ambient max at 176°F liquid: 176°F; Maximum operating pressure: 145 psi Flange; Standard: USA Threaded; Connection: 1 1/4" NPSM; Pressure stage: 10 Port-to-port; Liquid temperature range: 36°F to 230°F.
- 【Direct replacement】: Manufactured to original factory specifications and components tested to meet original specifications, fully adapted, no need to modify, directly replacement.
| ASIN | B0F99LXTQF |
|---|---|
| Brand Name | XUYUN |
| Manufacturer | XUYUN |
| Model Number | UP15-29SU/LC |
| Power Source | AC/DC |
| Material Type | Copper |
| Product Style | Circulator |
| Included Components | Circulator Pump |
