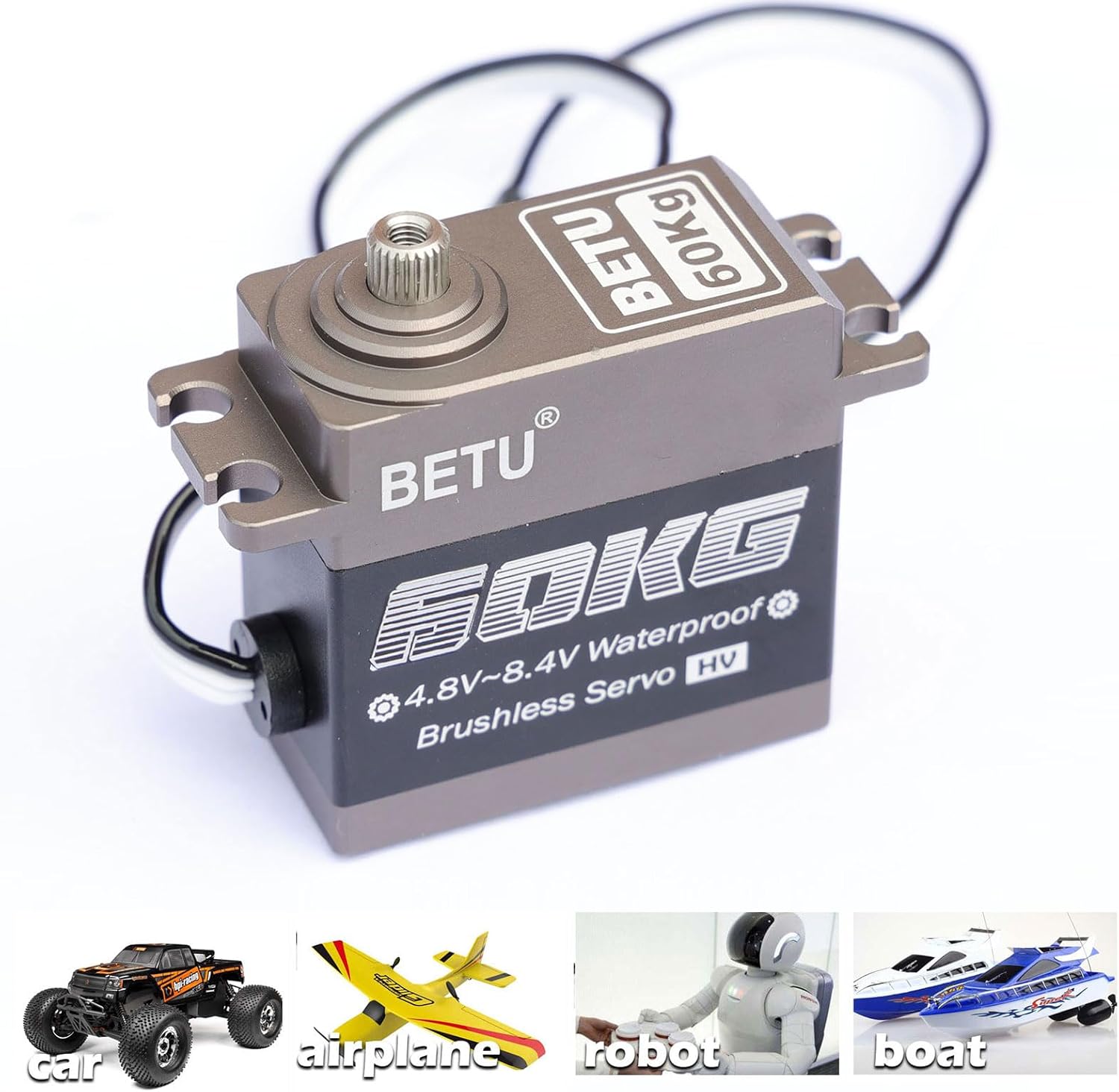

60kg Brushless Servo, High Speed Servo, Waterpoof RC Servo Compatible with 1/5，1/6, 1/8, 1/10 RC Car/Robot/Boat/Airplane

Specification:60KG Brushless High Torque Digital Servo is ideal for car, airplane ,and robot.Great digital Servo for people who are interested in developing software for robot parts, Such as mechanical arm, Quadcopter Drone and other remote control equipment.-High-speed big torque digital servo -High voltage 4.8~8.4V-Servo Equipped with full aluminum case and stainless steel Gear-CNC aluminum middle shell, higher operating accuracy-Less Noise, light weight -Stable and waterproofApply Environmental ConditionStorage Temperature Range: -30℃～80℃Operating Temperature Range: -20℃～60℃Operating Voltage Range: 4.8~8.4VMechanical SpecificationSize: 40.0*20.5*39.8mmWeight: 85gBearing: 2BBConnector wire: 300±5mmDiver type: Mos DriveMotor Type: Brushless MotorPotentiometer Type: Magnetic EncoderAmplifier Type: Digital ControlWaterproof performance: IP67Electrical SpecificationTest Voltage: 4.8V / 6V / 7.4V / 8.4 Idle current(at stopped): 500~800mA at 4.8V or 6V / 700~1200mA at 7.4V or 8.4Operating speed (at no load) 0.12 sec/60° at 4.8V; 0.1 sec/60° at 6V; 0.09sec/60° at 7.4V; 0.1sec/60° at 8.4VStall torque (at locked): 55kg-cm at 4.8V; 58kg-cm at 6V; 63kg-cm at 7.4V; 67kg-cm at 8.4VRunning Current: 7~8A at 4.8V; 8~9A at 6V; 9~10A at 7.4V; 10~11A at 8.4VControl SpecificationControl System: PWM(Pulse width modification)Pulse width range: 500～2500µsecNeutral position: 1500µsecRunning degree: 180° (when 500～2500 μsec)Dead band width: 3 µsecOperating frequency: 50-330HzRotating direction: Counterclockwise (when 1000～2000 µsec)Package Included:-1 x 60KG Waterproof Digital Servo-1 x 25T Adjustable metal servo arm

• 60kg Brushless Servo: High Torque Servo's maximum torque is up to 57 kg/cm at 8.4V, high torque, Compatible with 1/5, 1/6, 1/8, 1/10 RC Car / Robot / Boat / .Airplane
• 60kg Waterpoof Servo: Waterproof performance IP67. Controllable angle range from 0 to 180 degrees, Excellent linearity, precision control.
• 60kG Rc Servo: BETU 55kg Rc Servo Adapts to High voltage 4.8~8.4V, High-pressure steering servo: 0.13 sec/60° at 4.8V; 0.12sec/60° at 6V; 0.1sec/60° at 7.4V; 0.09sec/60° at 8.4V, more powerful and powerful, longer life.
• All metal servo: Equipped with full aluminum case and stainless steel Gear, CNC aluminium middle shell, less noise, light weight, higher operating accuracy.
• Product Dimension: 1.57 x 0.78 x 1.57 inch(40.0*20.5*39.8mm); Weight:2.7oz (85g); With one 25T adjustable metal servo arm.
