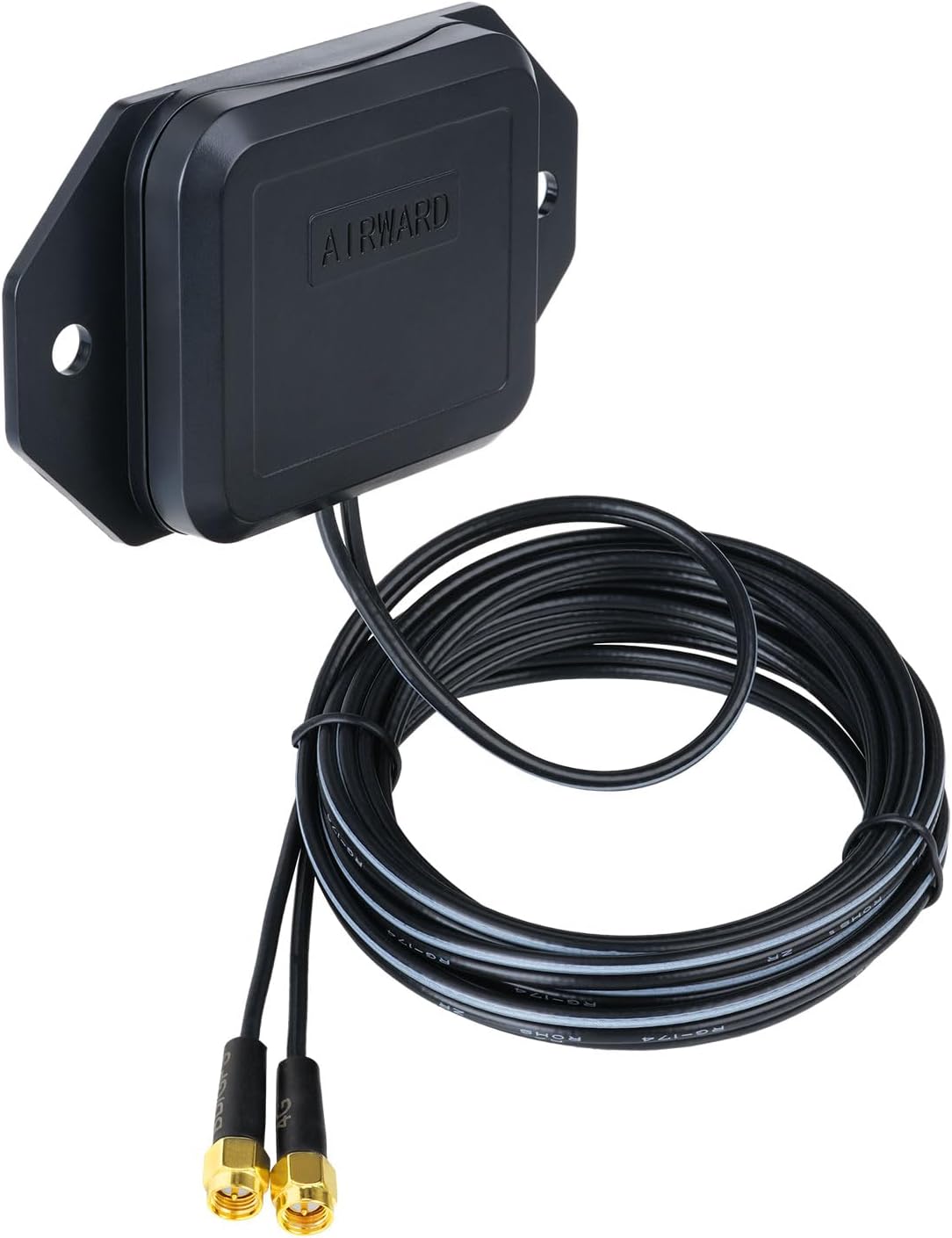

Bingfu Dual-Band GPS BeiDou 4G LTE SMA Cellular Antenna 28dB LNA High Gain for Automotive IoT Tracking

Specification: GNSS Module: BeiDou: 1561.098±2.046MHz GPS: 1575.42±1.023MHz Bandwidth: >5MHz Gain: 4.5dBic (zenith-mounted) VSWR: ≤2.0 Polarization: Right-Hand Circular (RHCP) LNA Specifications: Gain: 28dB Noise Figure: <1.5dB Operating Voltage: 3.0-3.6V DC Current Consumption: ≤30mA @3.3V 4G LTE Module: Frequency Bands: 824-960MHz & 1710-2690MHz VSWR: ≤3.0 (Typical: 1.32-1.86) Efficiency: 43.89-57.52% Gain: 2.5dBi Mechanical & Environmental: Dimensions: 113x63x16mm (optimized for horizontal mounting) Cable: RG174, 3M/10ft Connectors: Dual SMA male Operating Temperature: -40°C to +85°C Storage Temperature: -40°C to +90°C Certifications & Compliance: RoHS compliant IP65 waterproof rating Vibration resistant (sine sweep 10-50Hz) Applications: Automotive fleet management IoT asset tracking devices Industrial equipment monitoring Marine navigation systems List:1 x Combination Antenna

• Stable BeiDou and GPS Signals: Supports BeiDou at 1561 MHz and GPS at 1575 MHz for high accuracy positioning in automotive and IoT tracking; RHCP polarization provides stable signals in urban or obstructed areas; 28 dB gain with noise figure less than 1.5 dB ensures reliable performance; SAW filtering minimizes interference to enhance real time tracking
• 4G LTE Coverage:​Operates in 824 to 960 MHz and 1710 to 2690 MHz bands for wide network connectivity; 2.5 dB gain improves data transmission for seamless 4G LTE communication; Includes 10 ft RG174 cable with SMA connector for easy plug and play setup in car or IoT devices
• Industrial Durability:​IP65 rated ABS housing resists dust and water for outdoor or harsh environments; Functions in extreme temperatures from minus 40 to 85 degrees C for year round use; Vibration resistant design handles movement up to 50 Hz for automotive applications; RoHS compliance ensures safety and longevity
• Easy Installation:​Low power consumption under 30 mA at 3.3 V reduces energy costs and extends battery life; Horizontal mounting optimization simplifies positioning on vehicles or equipment; Plug and play integration saves time for quick global deployments; RoHS compliant for worldwide compatibility
• Reliable Tracking Solution:​Designed for automotive tracking and IoT asset monitoring; Dual system support boosts precision for real time location updates; Waterproof and durable construction ensures consistent performance on the go; Combines 4G and GPS capabilities for versatile high precision tracking needs
