Grating Ruler, KA500 120 170 220 270 320 370 420 470 520mm 0.001mm Slim Linear Scale KA-500 Small Thin 1um Optical Encoder for Lathe Mill,Accurate and Stable(KA500-1um-420mm)

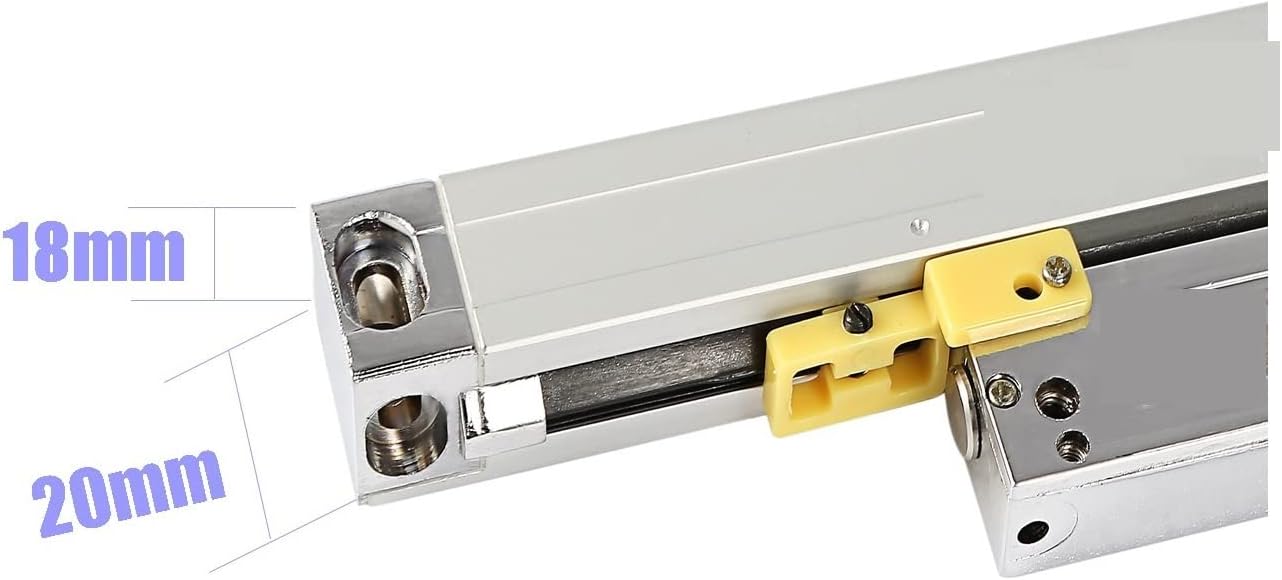

KA500 120 170 220 270 320 370 420 470 520mm 0.001mm Slim Linear Scale KA-500 Small Thin 1um Optical Encoder for Lathe MillKA-500 linear encoder avaliable in 70-520mm. Cross Section is 18X20mm.Package content-1 piece Sino KA-500 scale, -1 piece fully closed dust cover-1 piecemounting bracket with screw bagScale parameterAvailable Measrus Length: 70mm-520mmCross Section: 18mm X 20mmAccuracy: +/- 3, 5, 10 (20 degree, 680 F 1000mm)Max of Measuring speed: 60m/minReference point: one unit per 50mmProtection level: IP55Resolution: 1um(0.001mm)Output signal: TTL Cable standard: 3 metersConnetor: 9 Pins

• 【Professional】--- This is a high accuracy linear scale
• 【Practical and Reliable】--- Slide part adopts of reliable and 5 bearing system design.
• 【Stable Performance】--- The repeated positioning measurement is accurate and stable.
• 【Exquisite Workmanship】--- Signal cable uses multilayer shielded wire steel and metal shell protection.
• 【Long Service Life】--- The scale body uses aluminum profile, and head uses zinc alloy die casting with chrome plating, corrosion resistance.
