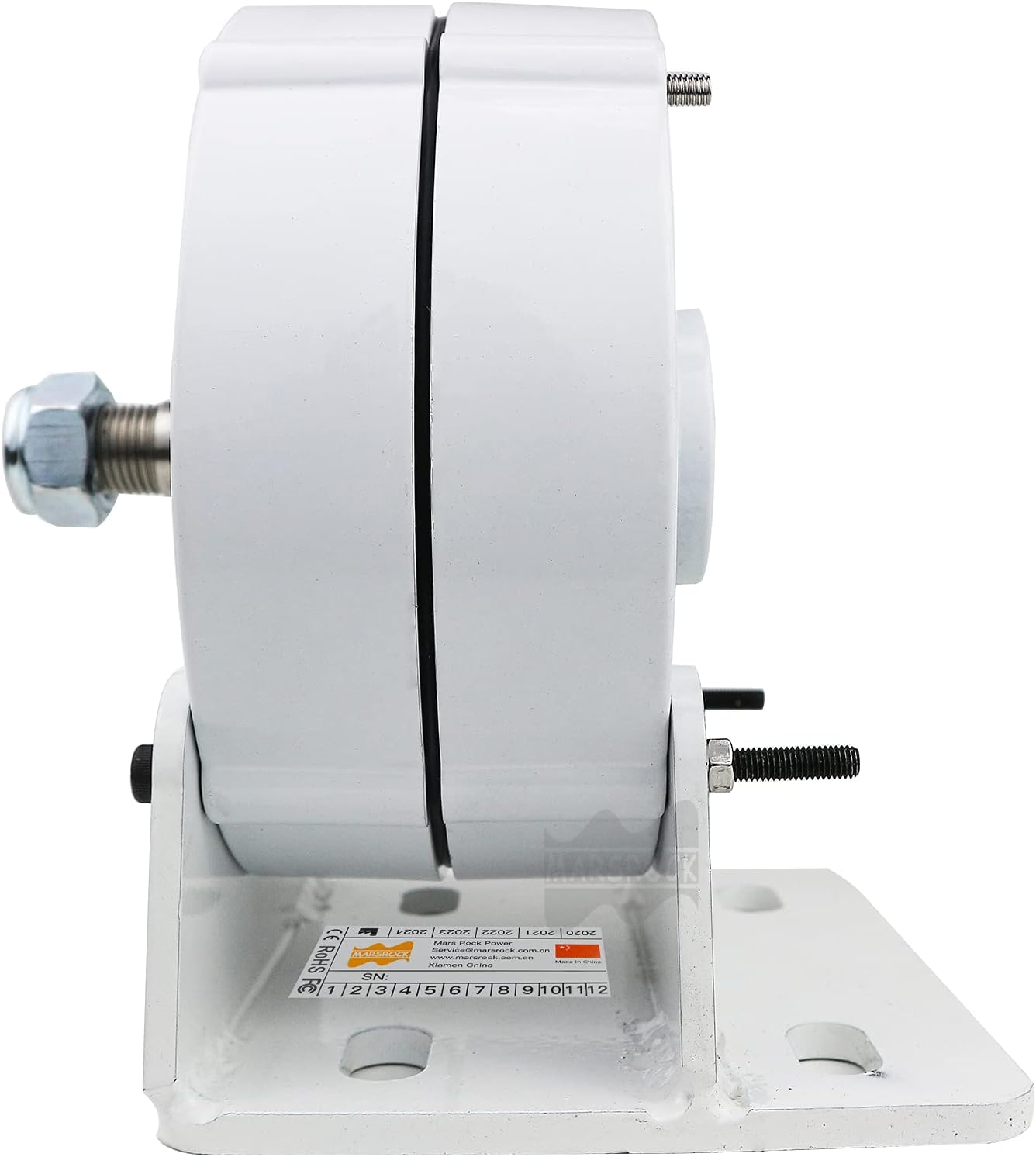

Marsrock 100W 12V or 24V With Base Permanent Magnet Generator AC Alternator for Vertical or Horizontal Wind Turbine 100W Wind Generator (12V) (12V+Base)

Model Number:G100SType:Wind Power GeneratorRated Power:100WMax Power:130WRatedVoltage:12VRotate Speed:600r/mNet Weight:3kgGross Weight:3.5kgOutput Current :AC Start Torque: 0.12Nm generator :3 phase permanent magnet synchronous generator Insulation Class: F Service Life: More Than 20 years Bearing :HRB Shaft Material :stainless steel Shell Material :aluminium alloy Permanent Magnet Material: Rare Earth NdFeB Protection Grade: IP54 Lubrication Lubrication: Grease Working temperature :-40℃ - 80 ℃ What kind of region can be installed wind turbine?Small wind turbines should be applied in the regions which wind resources is sufficient. The annual average wind speed should be more than 3m/s, the effective wind speed 3-20m/s should be more than 3000h in accumulation per year. The density of 3-20m/s effectively average wind power should be more than 100W/m2.It should be noted that choosing the rated design speed wind turbine is in conformity with local design speed. It is significantly in making use of wind resources and in economic aspect. Wind tunnel test proves that the fan power transformation of the impeller in the direct ratio with wind speed, that is to say, the wind speed decide the output electrical power.

• With the best NdFeB Permanent Magnet, high-grade pure copper winding, the generator can product power stably and high efficiently.
• Specially-designed rotor and rotator, low resistance moment in start-up, good at cooling
• Gearless, direct -drive, and low rev rare earth Permanent Magnet Generator, easy and safe for operating and maintenance.
• Die casting aluminum alloy case, anti- corrosion, acid and alkali resistant, anti salt corrosion
• Package Size: 21cm x 21cm x 15cm (8.27in x 8.27in x 5.91in); Package Weight: 3.7kg (8.16lb.).
