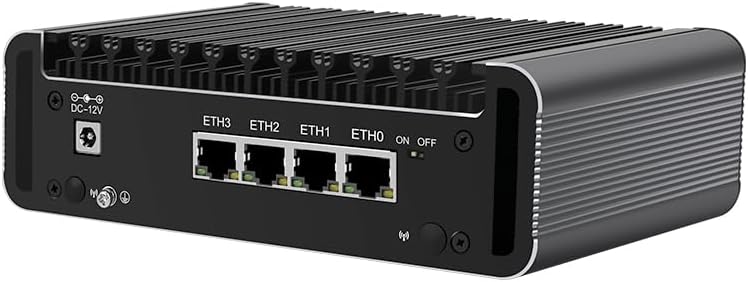

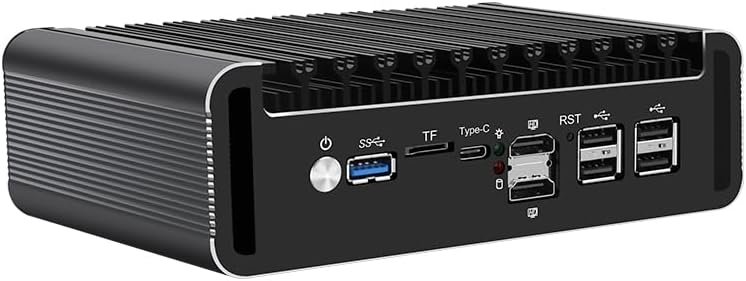

Mini PC Celeron J6413, Firewall Hardware 4 x i226V 2.5GbE LAN, DDR4 2*M.2 NVMe,2*HDMI 1.4/Type-C Display,Micro Router Appliance Support Home Office OPNsense AES-NI,TF Card Slot,NO RAM NO SSD
Product details
| Management number | 239779775 | Release Date | 2026/07/14 | List Price | US$74.40 | Model Number | 239779775 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Product Highlight Celeron Elkhart Lake Embedded Low Power Platform The whole machine has no fan passive cooling, zero noise, and low power consumption TDP of only 15W 2 * SO-DIMM DDR4 2400 (compatible with 2666/3200MHz), single maximum 32GB 4 Intel i226-V2.G RJ45 network cards 2 HDMI 1.4 supports synchronous or asynchronous dual display 5 USB ports, 1 USB 3.0, 4 USB 2.0 2 SATA3.0 mounts with 6Gbps speed 2 M.2 NVMe PCIe 3.0 x1 signal sockets Supports two power supply modes: 12V DC and Phoenix terminal 1 TF slot supports partial system booting Size：178.3mm * 125.2mm * 55mm Working environment: 0~75 ° C, 10%~90% relative humidity
- ◆Powerful J6413 Processo：Celeron J6413 Processor, 4 Cores 4 Threads, 4M Cache, Max Turbo Frequency 3.0 GHz, TDP 15W.Compatible with OPNsense, Windows,Linux, ESXI, OpenWrt and other systems. Press "Delete" key to enter BIOS setup, supports Auto Power On, Wake On Lake, GPIO, PXE.
- ◆ Quad 2.5GbE LAN: Mini Router PC with 4 x i226-V network card chip full UDE2.5G with filter connector, 2.5x faster than ordinary Gigabit Ethernet. Soft router can monitor network data, improve network security, powerful and wide operation. 1 TF slot supports partial system booting.
- ◆DDR4 Memory & Large Storage Capacity: Firewall box computer with 2xDDR4 SODIMM non-ecc ram slots, support 2400 (compatible with 2666/3200MHz), single maximum 32GB, 2 M.2 NVMe PCIe 3.0 x1+2xSATA3.0 SSD/HDD
- ◆UHD Graphics & Triple Display: J6413 processor integrated UHD Graphics, 2HD1.4 and Type-C display interfaces support 4K@30Hz.
- ◆Rich interfaces: 4 x2.5G LANs,4 xUSB2.0, 2xHDMI 1.4,1xType-C，1xUSB3.0,1xTF Card Slot etc supports data storage and system boot.
| ASIN | B0H2HJ6S4G |
|---|---|
| Brand | UDPTCP |
| RAM Type | DDR4 SDRAM |
| Model Name | CW-WT-J6413-4L-2M.2 |
| Manufacturer | UDPTCP |
| Memory Speed | 2400 MHz |
| Model Number | CW-WT-J6413-4L-2M.2 |
| BuiltIn Media | Water Cooling |
| Cooling Method | FAN |
| Processor Brand | Intel |
| Processor Count | 1 |
| Processor Speed | 1.8 GHz |
| Total Usb Ports | 6 |
| Video Processor | Intel |
| CPU Model Number | J6413 |
| Operating System | Windows |
| Processor Series | Celeron |
| Processor Socket | FCBGA1296 |
| Graphics Ram Type | L2 cache |
| Memory Clock Speed | 2400 GHz |
| Hard Disk Interface | Serial ATA |
| Graphics Coprocessor | Intel UHD Graphics |
| Graphics Description | Integrated |
| HumanInterface Input | Mouse |
| Warranty Description | One year warranty |
| Hard Disk Description | SSD |
| RAM Memory Technology | DDR4 |
| CPU Model Speed Maximum | 3 GHz |
| Graphics Card Interface | Integrated |
| Ram Memory Maximum Size | 32 GB |
| Specific Uses For Product | Everyday Use |
| Display Resolution Maximum | 3840x2160 |
| Total Number of HDMI Ports | 2 |
| Personal Computer Design Type | Mini PC |
