| Management number | 238365588 | Release Date | 2026/07/11 | List Price | US$23.26 | Model Number | 238365588 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

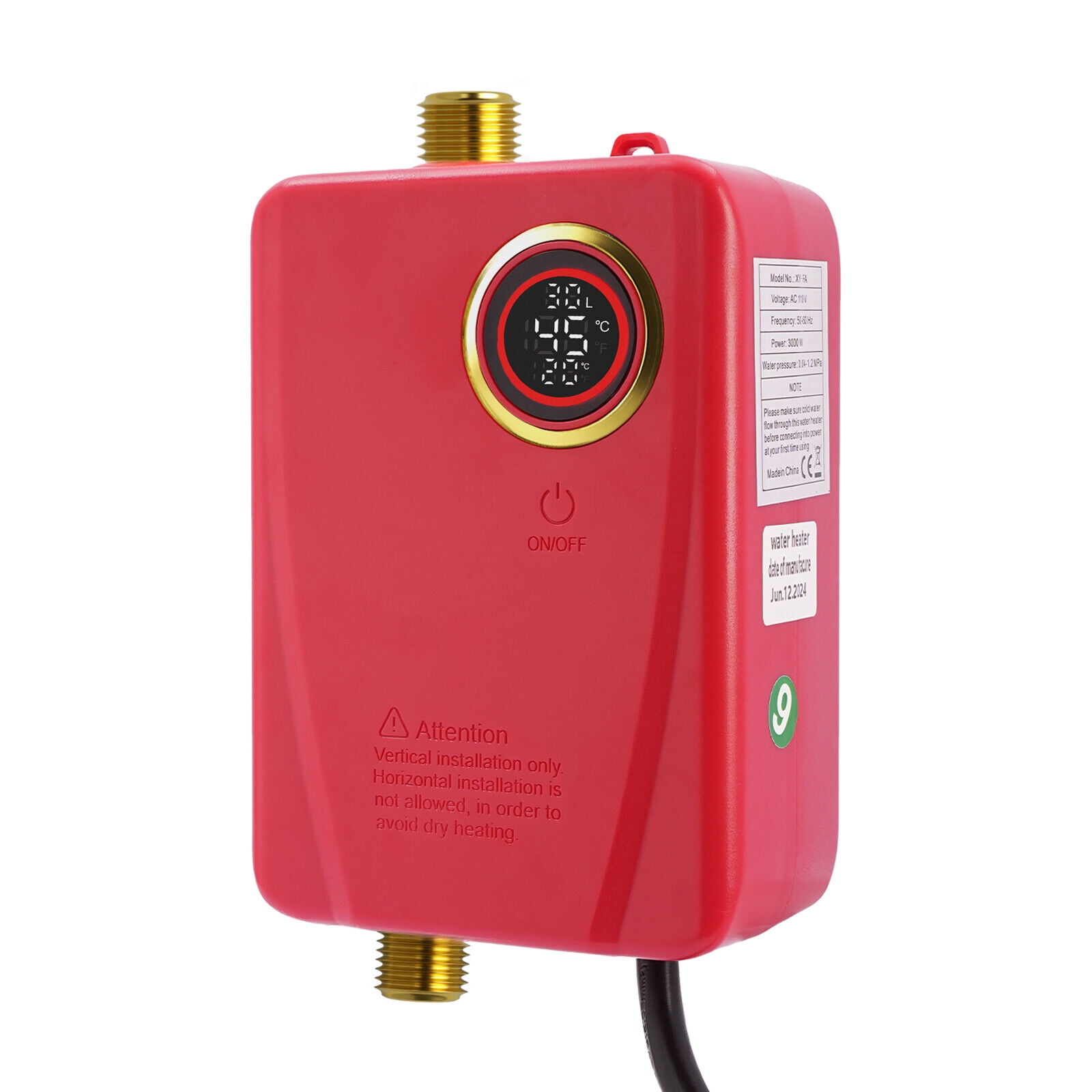

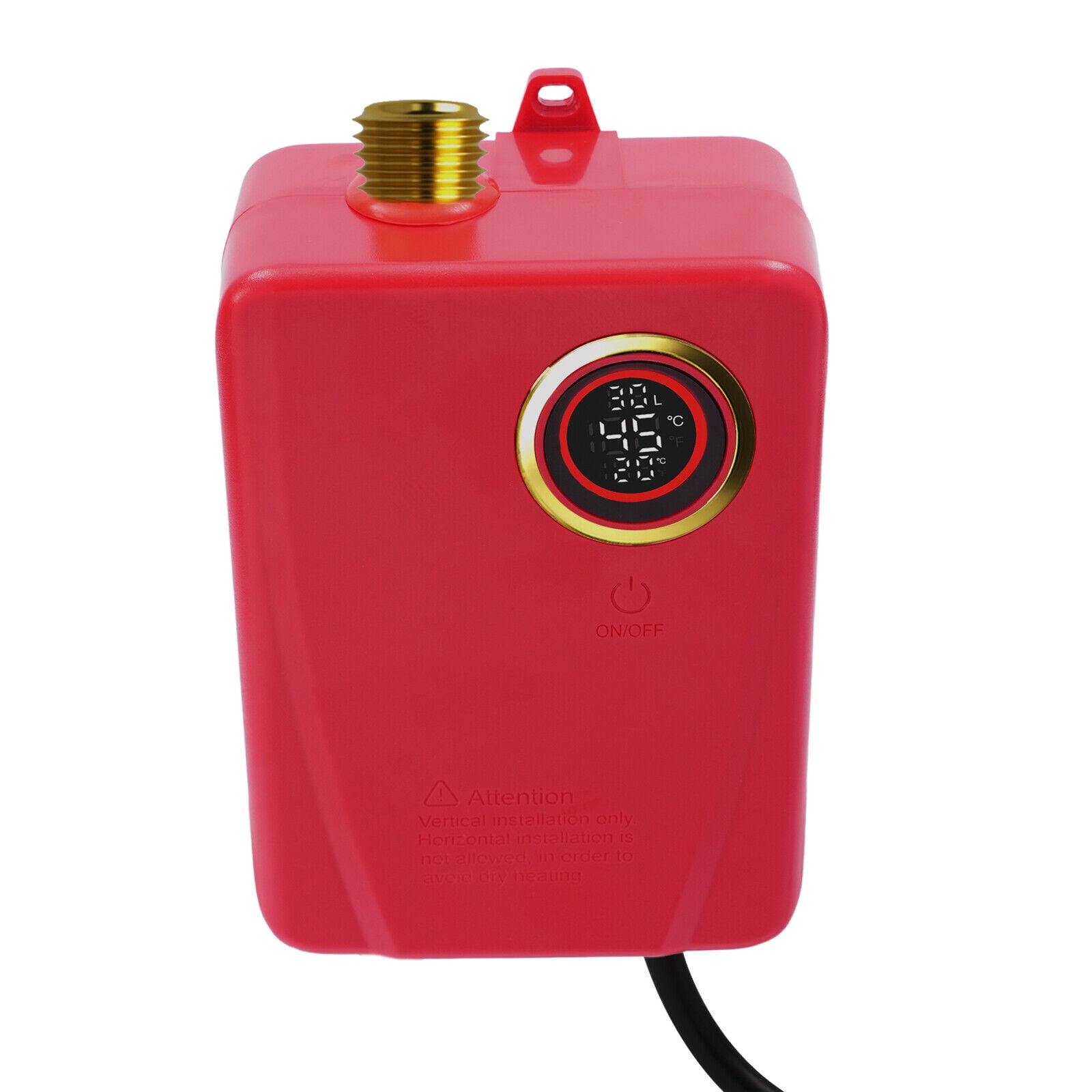

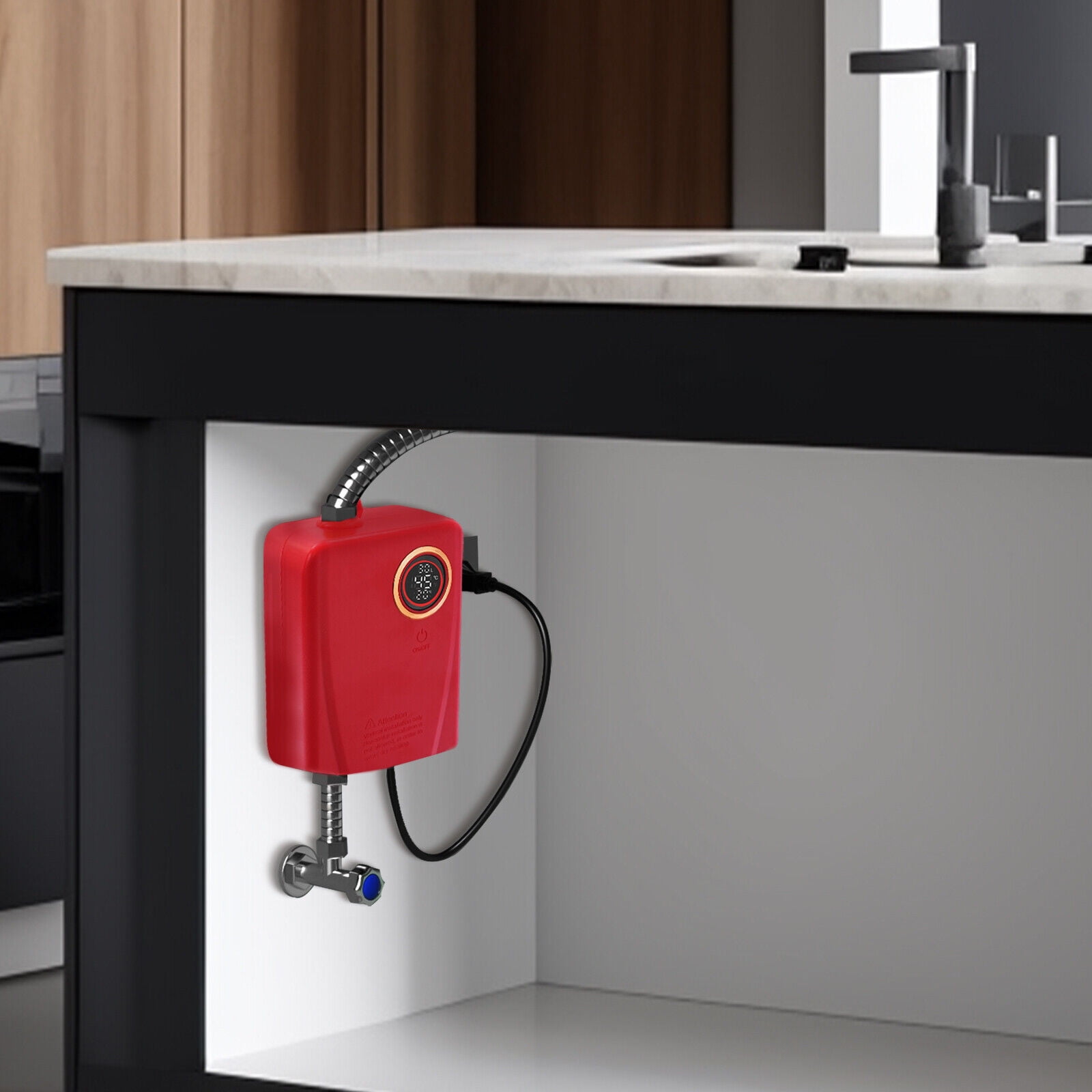

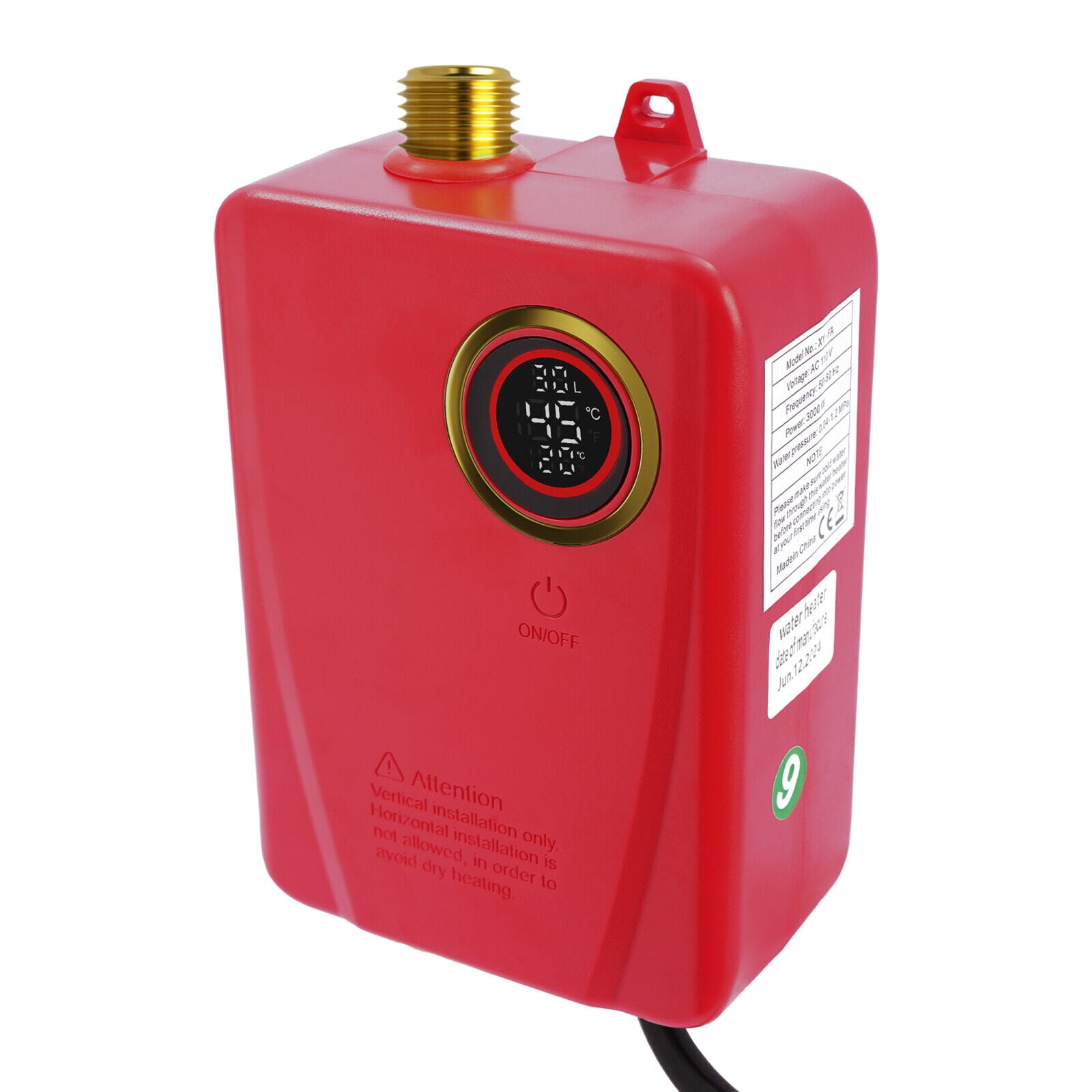

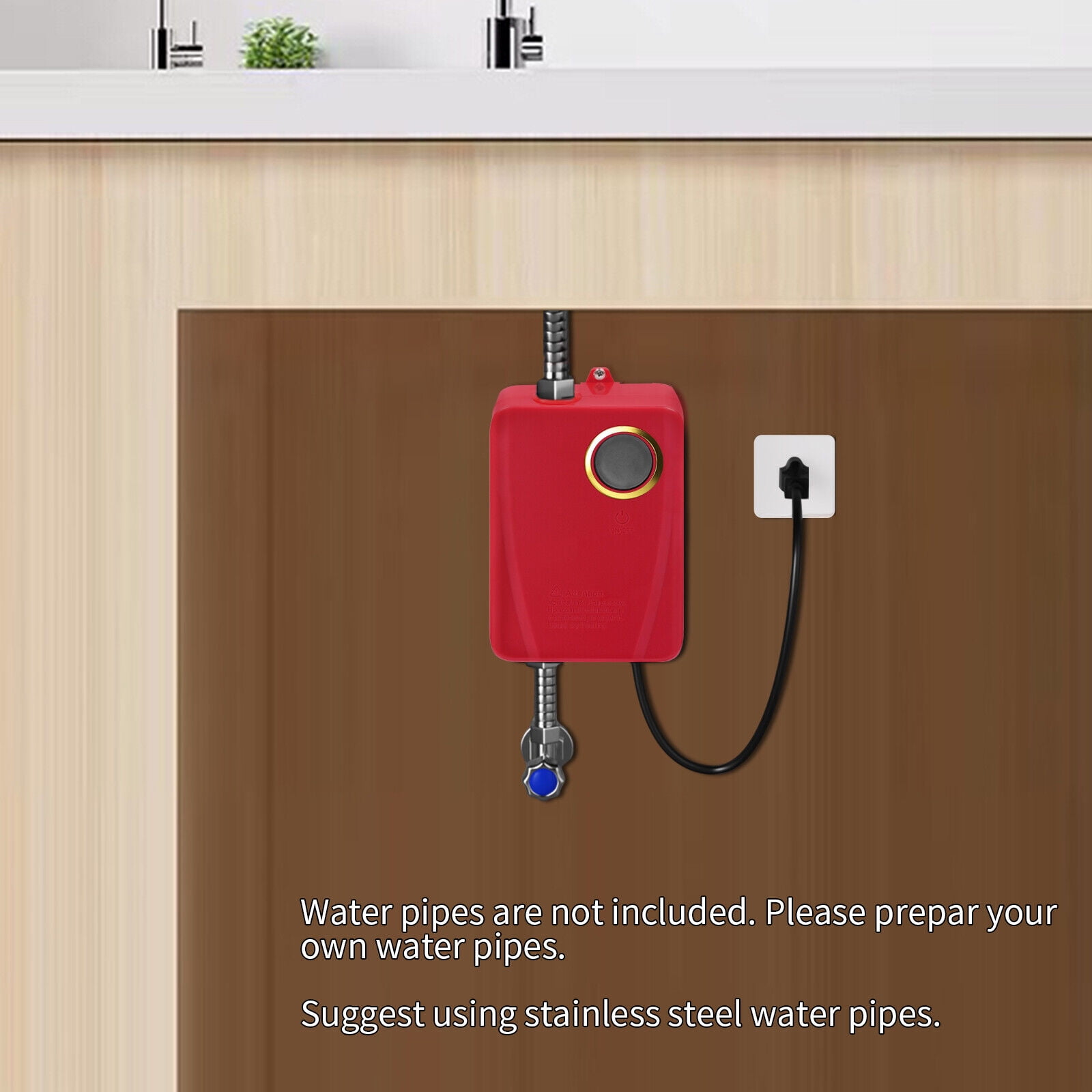

<h3>Details</h3> <ol> <li>Led Display: It displays the temperature clearly without having to measure the temperature by hand, which is convenient and safe.</li> <li>Brass Connectors: They are characterized by high strength and chemical stability, which can greatly extend the service life and provide you with healthy and safe water. Its standard size(G1/2) is also convenient for you to quickly connect the water pipe or faucet.</li> <li>Pre-drilled Holes: The 4 pre-drilled holes and 2 hanging holes on the back allow you to install the product faster.</li> <li>Application:It can be used in homes, schools, hospitals, offices, bars, kitchens, balconies, toilets, public restrooms, and laundry rooms.</li> </ol> <h3>Specification</h3> <ul> <li>Product Model: XY-FA</li> <li>Style: Modern</li> <li>Material: ABS, 304 Stainless Steel</li> <li>Process: Injection Molding</li> <li>Color: Red</li> <li>Inlet and Outlet Pipe Diameter: 20mm/0.79in, G1/2</li> <li>Rated Voltage: AC110V, 50-60HZ</li> <li>Rated Power: 3000W</li> <li>Temperature Range: 20~50℃/68-122F°</li> <li>Working Water Pressure: 0.04-1.2 MPa</li> <li>Water Flow: Approx. 1-5L/0.26-1.32 Gal/Min</li> <li>Waterproof Grade: IPX4</li> <li>Temperature Display Type: LED Display</li> <li>Home Installation Environment Route: 2.5mm²</li> <li>Circuit Breaker Requirement: >32A</li> <li>Mount Type: Wall Mounted</li> <li>Plug Type: US Standard</li> <li>Power Source: Corded Electric</li> <li>Assembly Required: No</li> <li>Product Size: 11.6*7*19.5cm/4.57*2.76*7.68in</li> <li>Overall Height: 23.5cm/9.25in</li> <li>Package Size: 23.5*19*10cm/9.25*7.48*3.94in</li> <li>Net Weight: 1kg/2.2lbs</li> <li>Gross Weight: 1.2kg/2.65lbs</li> <li>Package Included</li> <li>1* Electric Water Heater</li> <li>1* English Manual</li> </ul> <h3>Notes</h3> <ol> <li>Please read the instruction manual completely before installation and use, and pay particular attention to the safety instructions included.</li> <li>When using it for the first time, please make sure that cold water flows through this water heater before turning on the power.</li> <li>Vertical installation only. Horizontal installation is not allowed, in order to avoid dry heating.</li> <li>Please note that a descaling device should be installed on the inlet pipe to avoid scale buildup and extend the life of the water heater. Please note that it must be connected to a >32A circuit breaker and a 2.5mm² wire.</li> <li>To ensure the quality of the product, the product will be inspected before leaving the factory, if you find residual water droplets inside the product when you receive it, this is a normal phenomenon and does not affect the use.</li> <li>If you want to use this product at home and the water pressure is low, or the water flow is small, or use the roof water tower water supply, please install a booster pump(not included).</li> <li>Please pay attention to electricity safety hazards, improper installation may lead to major safety hazards, please be sure to let the professional install it, and do not install by yourself.</li> <li>Please note that this product produces thermostatic water, but is not recommended for use in the shower. If you need to shower, please purchase a water heater with more power. And is not suitable for installation in bathhouses, caravans, etc.</li> <li>Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement and make sure you do not mind before ordering.</li> </ol>
| Water heater type | Tankless Water Heaters |
|---|---|
| Brand | Unbranded |
| Volume capacity | 0.01 gal |
| Rec location | Kitchen, Indoor, Bathroom |
| Rec. room | Bathroom, Kitchen |
| Height | 9.25 in |
| Power type | Corded Electric |
| Watts | 3000 W |
| Amps | 32 Amps |
| Volts | 110 V |
| Weight | 2.2 lb |
| Accessories | 1* Electric Water Heater 1* English Manual |
| Model | ktn-JZETJF-002400US |
