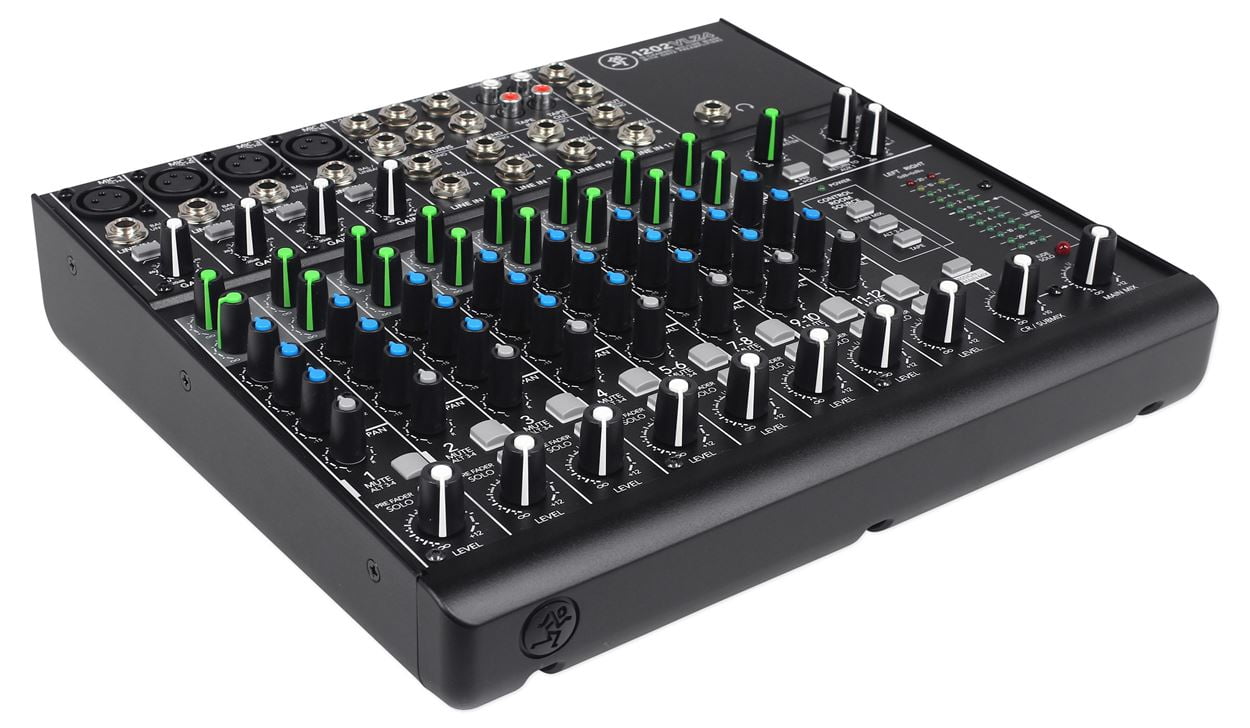

New Mackie 1202VLZ4 12-channel Compact Mixer + Matching Mackie Travel Bag

Package: Mackie 1202VLZ4 12-channel Compact Analog Low-Noise Mixer with 4 High-Quality Onyx Mic Preamps For Amazing Sound Clarity + Mackie Travel Bag For 1202-VLZ3 And 1202-VLZ Pro

Package Includes:

(1) Mackie 1202VLZ4 12-channel Compact Mixer

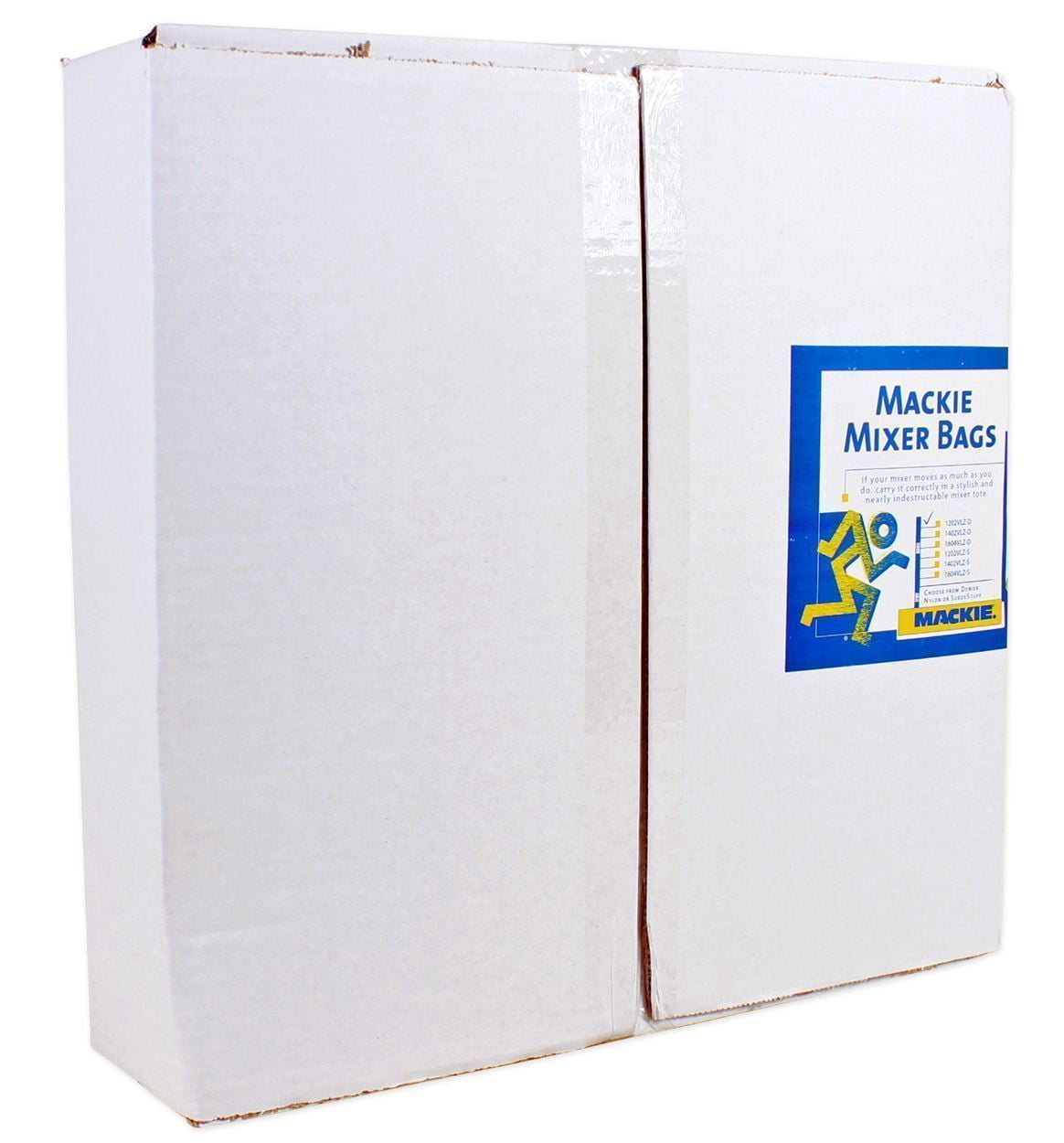

(1) Mackie Travel Bag For 1202-VLZ3

Video of 1202VLZ4:

Features:

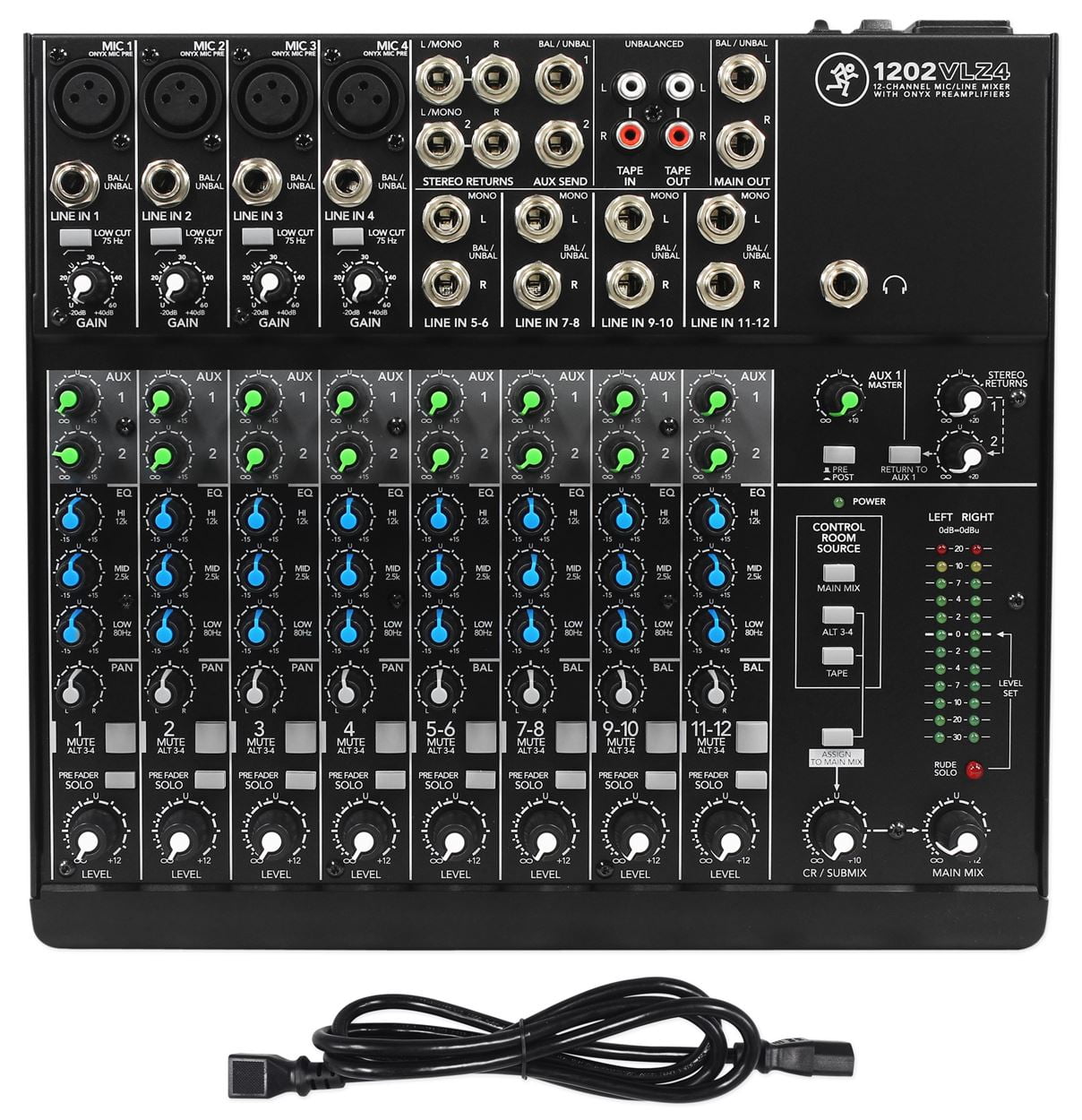

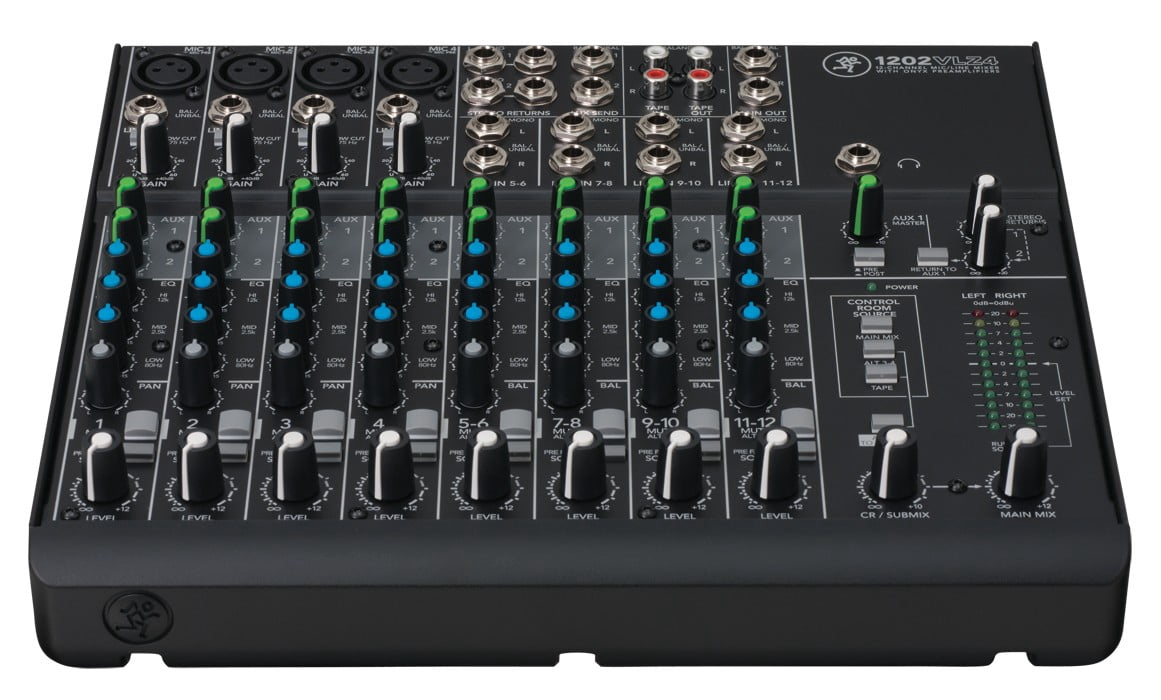

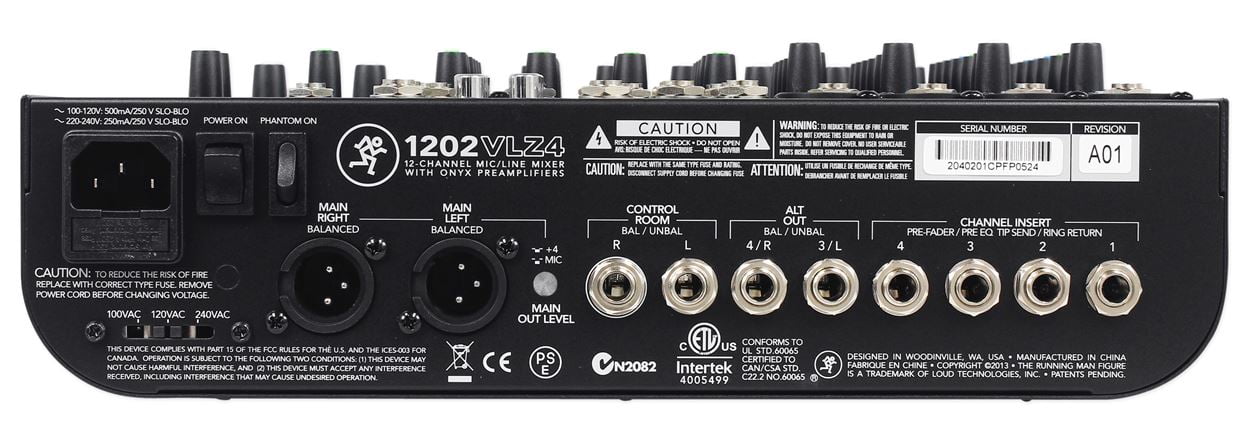

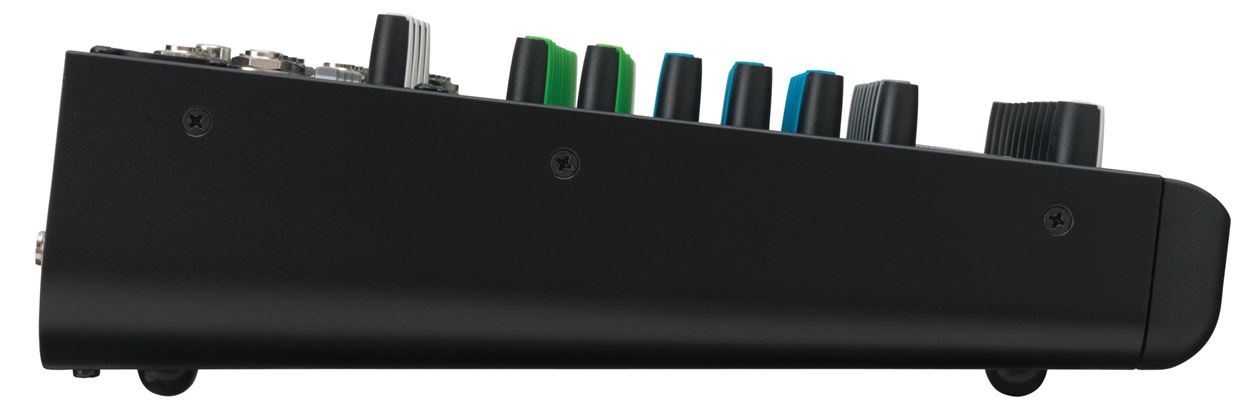

Mackie 1202VLZ4 12-channel Compact Mixer
12-channel mixer featuring Mackie signature high-headroom/low-noise design
4 boutique-quality Onyx mic preamps
Ultra-wide 60dB gain range
128.5 dB dynamic range
+22 dBu line input handling
Extended frequency response
Distortion under 0.0007% (20Hz – 50kHz)
Improved RF rejection perfect for broadcast applications
Phantom power for condenser mics
12 high-headroom line inputs
4 balanced inserts perfect for integrating outboard gear
3-band EQ (80Hz, 2.5kHz, 12kHz)
18 dB/oct 75Hz low-cut filter on mic input channels
2 aux sends, level, pan and PFL solo on each channel
2 stereo returns for connecting FX processor or other stereo source
ALT 3/4 stereo bus for added routing flexibility
Control room / phones source matrix
High-resolution 12-segment stereo meters
Sealed rotary controls resist dust and grime
“Built-Like-A-Tank” rugged steel chassis with powder-coat finish
High-visibility, high-contrast controls deliver convenient “at-a-glance” visualfeedback
Rack-mountable design using optional rack ear kit

Details:

Main Mix Noise
(20 Hz–20 kHz bandwidth, 1/4" main out, channels 1-4 gain @ unity, channel EQsflat, all channels assigned to main mix, channels 1 and 3 panned left, 2 and 4panned right.)
Main mix knob down, channel gain knobs down: –100 dBu
Main mix knob @ unity, channel gain knobs down: –86.5 dBu
(90 dB Signal to Noise Ratio, ref +4 dBu)
Main mix knob @ unity, channel gain knobs @ unity: –84.5 dBu
Total Harmonic Distortion (THD)
(1 kHz @ 30 dB gain, 20 Hz–20 kHz bandwidth) Mic pre @ insert <0.0007%
Attenuation / Crosstalk
(1 kHz relative to 0 dBu, 20 Hz–20 kHz bandwidth, line in,
1/4"main out, gain @ unity)
Main mix knob down: –75 dBu
Channel Alt / Mute switch engaged: –85 dBu
Channel gain knob down: –87 dBu
Frequency Response Mic input to main output (gain @ unity)
+0, –1 dB, 20 Hz to 50 kHz
+0, –3 dB, <10 Hz to >100 kHz
Equivalent Input Noise (EIN)(Mic input to insert send out, max gain)
150 O termination: –128.5 dBu, 20 Hz–20 kHz
Common Mode Rejection Ratio (CMRR)
1 kHz: better than –70 dB
Maximum Levels
Mic in: +22 dBu
Tape in: +16 dBu
All other inputs: +22 dBu
Main mix XLR out: +28 dBu
All other outputs: +22 dBu
Impedances
Mic in: 2.5 k Ohm
Channel insert return: 2.5 k Ohm
All other inputs: 10 k Ohm or greater
Tape out: 1.1 k Ohm
All other outputs: 120 Ohm
EQ
High Shelving: ±15 dB @ 12 kHz
Mid Peaking: ±15 dB @ 2.5 kHz
Low Shelving: ±15 dB @ 80 Hz
AC Power Requirements
Power Consumption: 25 watts
US, JP: 100 – 120 VAC, 50 – 60 Hz
EU, UK, AU, CN: 200 – 240 VAC, 50 – 60 Hz
Operating Temperature: 0 ° – 40 °C, 32 ° – 104 °F

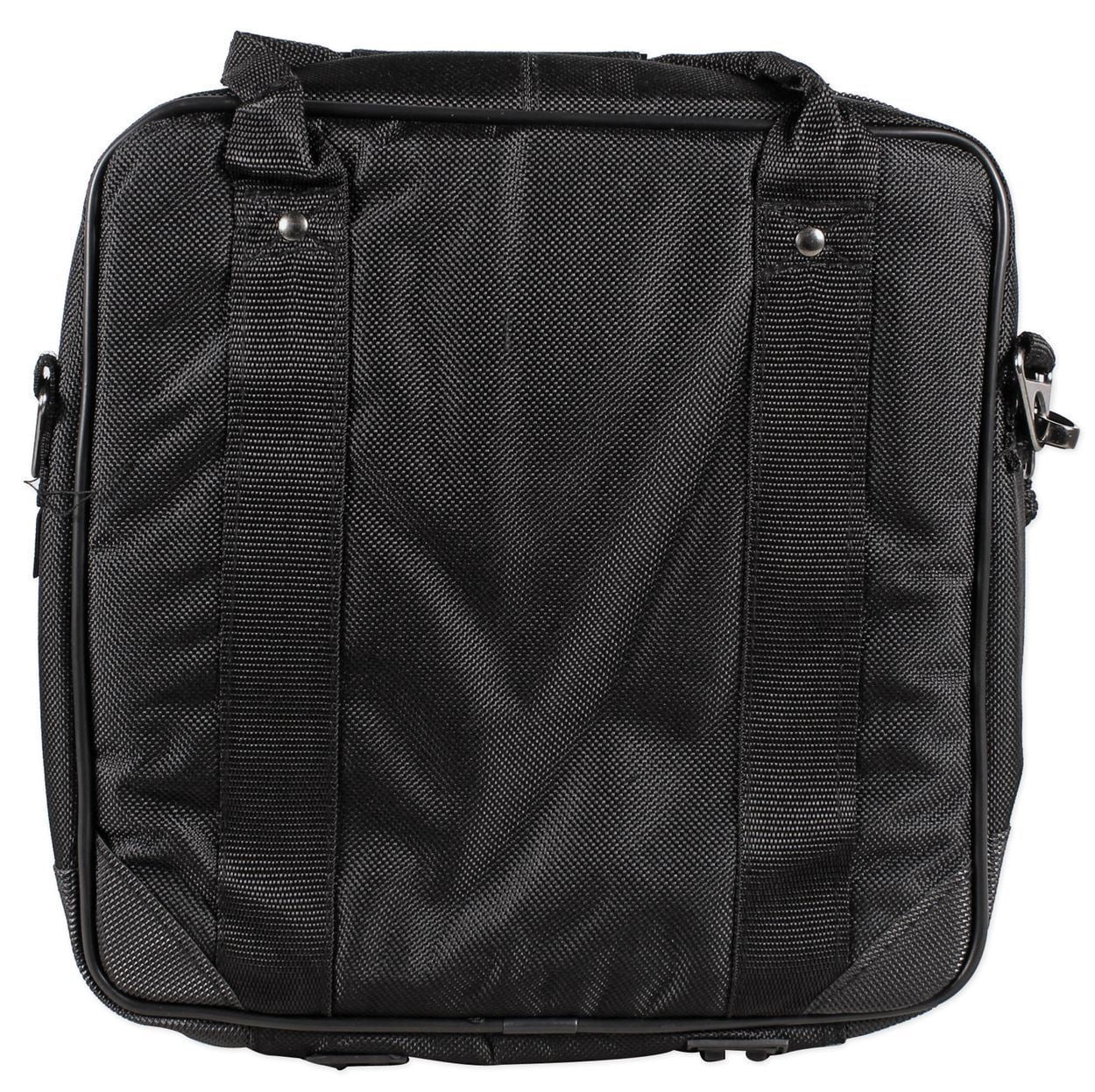

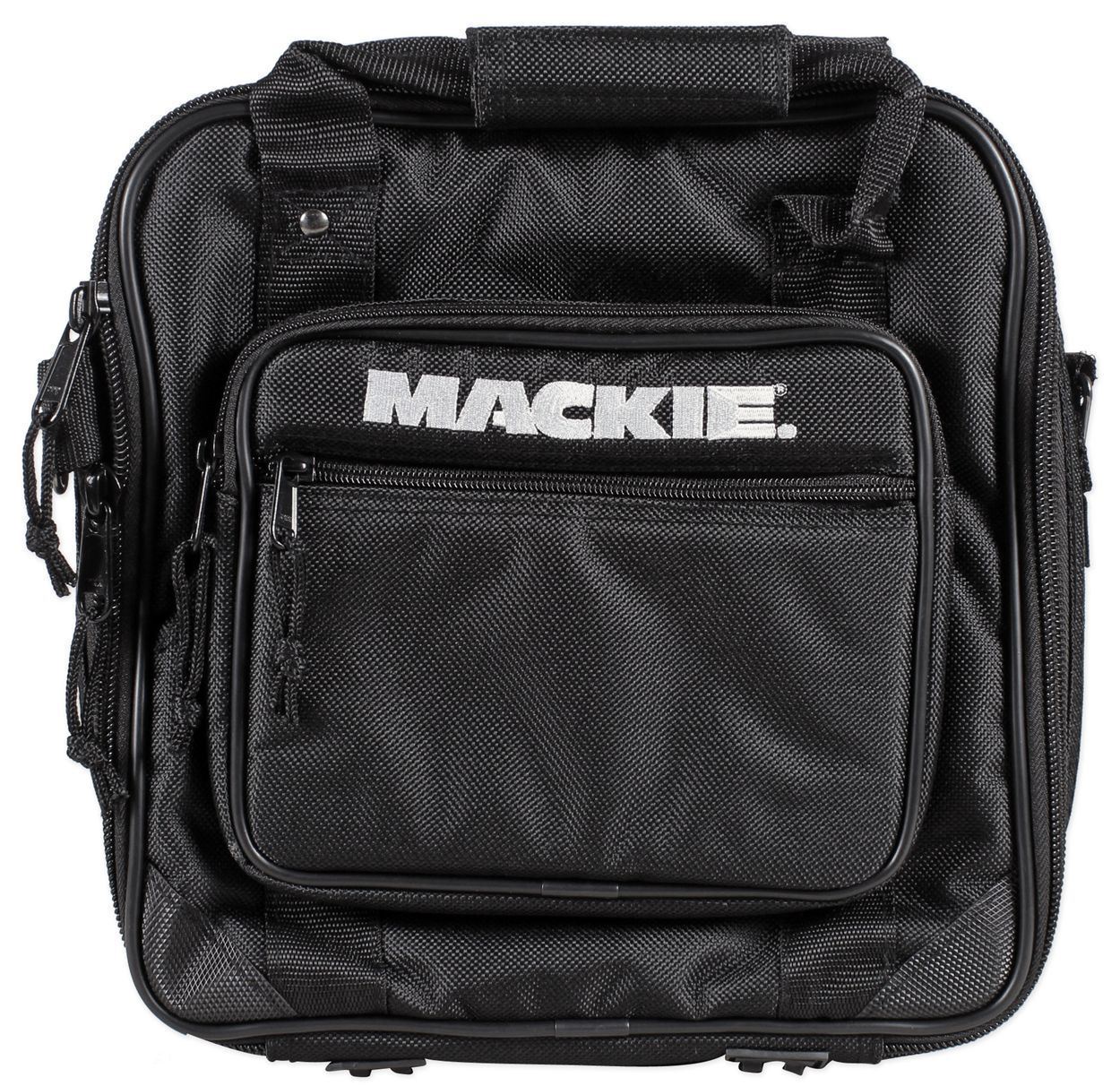

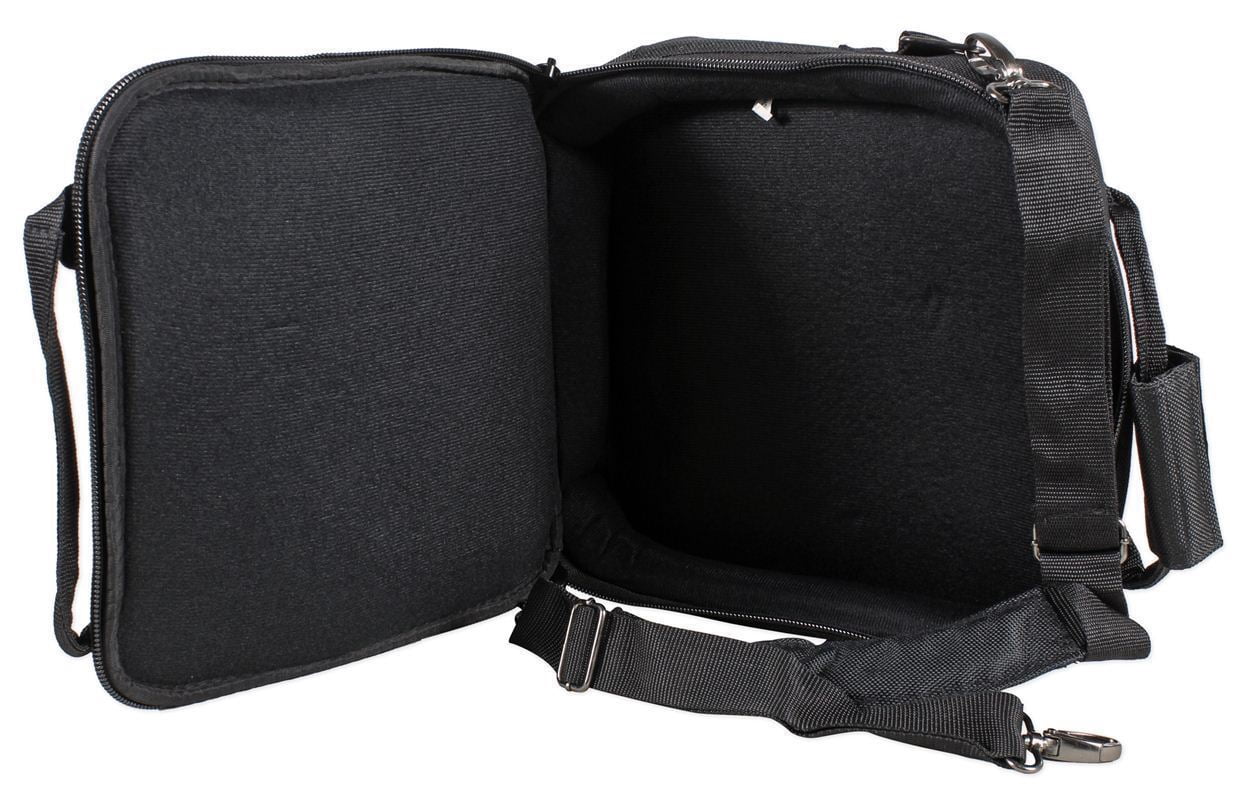

Features of Bag For 1202-VLZ:

highly durable
1202-VLZ3 mixer bag specifically built and designed for this model
reinforced with chunky foam, tarped corners
padded shoulder strap
zippered & padded outer pocket
Embroidered Mackie Logo
Padded Sides
1500 Denier Nylon
Heavy duty zippers







Brand	Mackie
Audio mixer type	Mixer
Channels	12
Digital/analog	Analog
Is powered	N
Connection	XLR
Features	Compact, Extended, Durable, High Quality, Reinforced, Padded, Embroidered
Accessories	Mackie Travel Bag
Weight	14.19
Audio output	25 W
Input/output direction	Input, Output
Has written warranty	No
Model	1202VLZ4+Bag For 1202-VLZ
