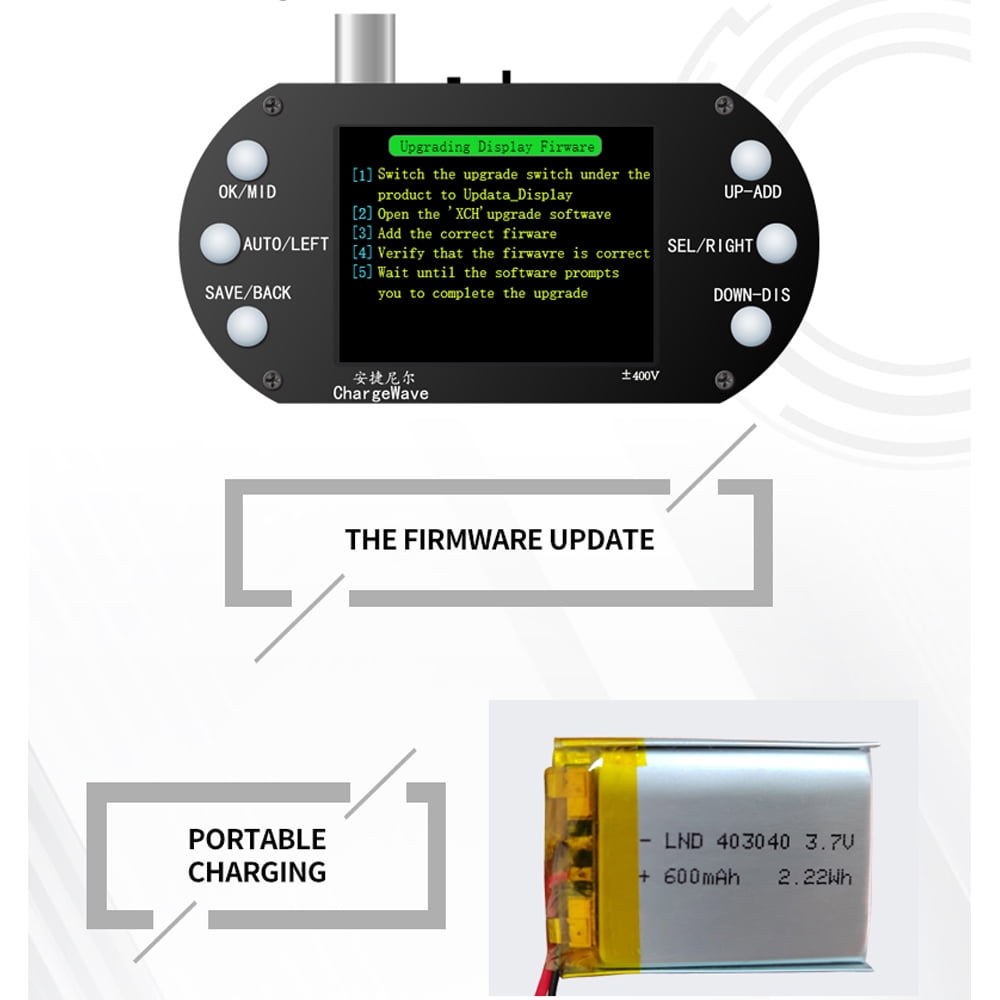

Handheld Oscilloscope 320*240 Resolution 2.4inch TFT Display 2.5MHz Sample Rate 500KHz Bandwidth Oscillometer Widely applicable, it can be used in a wide ranges of applications such as automotive maintenance, appliance maintenance, teaching, and research. 2.5MHz sample rate, 200KHz actual bandwidth, 500KHz analogue bandwidth (sinewaves). measurement of voltage signal is to ±400V. Equipped with a 2.4-inch TFT display, 320*240 resolution, you can see measurement data displayed on screen. efficient one-click AUTO function displays measured waveform without tedious adjustment. Waveform measurements display functions that can be used to detect sinewaves, waves, half-waves, sink pulse waves, etc. With one-button waveform saving feature. Only part of waveform that is currently being displayed can be saved. With complete trigger function (single, normal, automatic), no matter for periodic analogue signal or non-periodic digital signal can be used freely.<br><br>Note:<br>Some of measured signals cannot be correctly captured with AUTO and need to be adjusted manually.<br>Firmware upgrade: To upgrade display part, press OK to turn on machine, to upgrade bottom part, press SAVE to turn on machine.<br><br>Specifications:<br>Package size:<br>Package weight:<br>Rate of adoption: 2.5MHz<br>Voltage ranges: 0-3.3V (fix)<br>Display: 2.4" TFT 320*240 Resolution ratio<br>Duty: 0-100%<br>Type: standard configuration, high configuration (optional)<br>Actual bandwidth: 200KH<br>Standard configuration: 200g / 7.05ounce<br>PWM output:<br>Frequency: 1K-80KHz<br>Frequency: 1-1KHz<br>Upper computer: Not supported for now<br>Measuring ranges: X1/40V; X10/400V<br>Name: Handheld Oscilloscope<br>Battery capacity: 1 * 3.7V, 600mAh (included)<br>Output:<br>Item size: 50 * 100mm / 1.97 * 3.94in<br>Input impedance:<br>Standard configuration: 135 * 102 * 30mm / 5.31 * 4.02 * 1.18in<br>Firmware upgrade: Support<br>Voltage: 3.3V<br>Analogue bandwidth: 500KHz<br>Depth of storage:1Kb<br>Parameter type:12<br>High configuration: 250g / 8.82ounce<br>High configuration: 105 * 155 * 40mm / 4.13 * 6.10 * 1.57in<br>Model number: SCO_1_500K<br>Function: 17 Waveforms<br>Material: plastics<br>Charging voltage: 5V<br><br><br>Packing List (standard configuration, ±40V):<br>1 * Handheld Oscilloscope<br>1 * Clip<br><br>OR<br><br>This oscilloscope has .4-inch TFT display, 320*240 resolution, you can see measurement data displayed on screen. 2.5MHz sample rate, 200KHz actual bandwidth, 500KHz analogue bandwidth (sinewaves). efficient one-click AUTO function displays measured waveform without tedious adjustment. Waveform measurements display functions that can be used to detect sinewaves, waves, half-waves, sink pulse waves, etc.<br><br>Packing List (high configuration, ±400V):<br>1 * Handheld Oscilloscope<br>1 * Probe<br>1 * Clip

• Equipped with a 2.4-inch TFT display, 320*240 resolution, you can see the measurement data displayed on the screen.

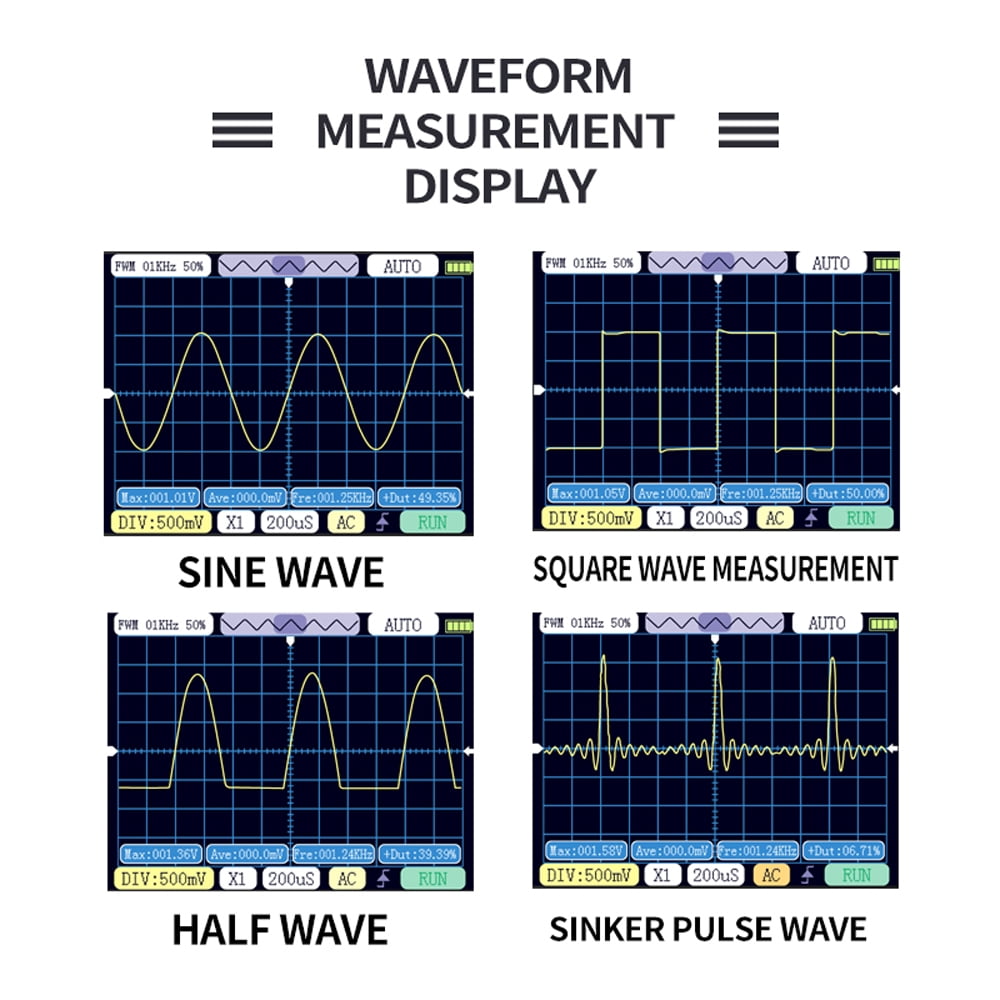

• Waveform measurements display functions that can be used to detect sinewaves, square waves, half-waves, sink pulse waves, etc.
• The efficient one-click AUTO function displays the measured waveform without tedious adjustment.
• With one-button waveform saving feature. Only the part of the waveform that is currently being displayed can be saved.
• The measurement of the voltage signal is up to ±400V.
