Rittal 1280.000, Wall-mounted AX Enclosure, Carbon Steel, 47.2" Height x 31.5" Width x 11.8" Depth

The AX compact enclosure with embossed enclosure cams in the roof, base and side replicates the familiar 25 mm system grid from the VX25 large enclosure. Thanks to this unique, patented system, AX compact control enclosures are prepared for all expansion and retrofit cases. System components and accessories can be installed and retrofitted easily, quickly and safely on rails without drilling. More interior finishing options thanks to integrated housing cams in the 25 mm system grid in combination with the rail for interior finishing and our wide range of system accessories. Maintaining the protection class (UL approval) by mounting the rail for interior installation without drilling. Additional mounting level and increased load capacity due to base configuration rail. Easy planning and configuration with the Rittal configurator RiPanel. Supply includes: Housing with door(s)/Flange (gland) plate(s) in enclosure base/Mounting plate/Punched door strip/Lock: 3 mm double-bit.

• Door: Carbon steel, all-round foamed-in PU seal
• Housing and door: Dipcoat primed, powder-coated on the outside, textured paint / Mounting plate: Zinc-plated

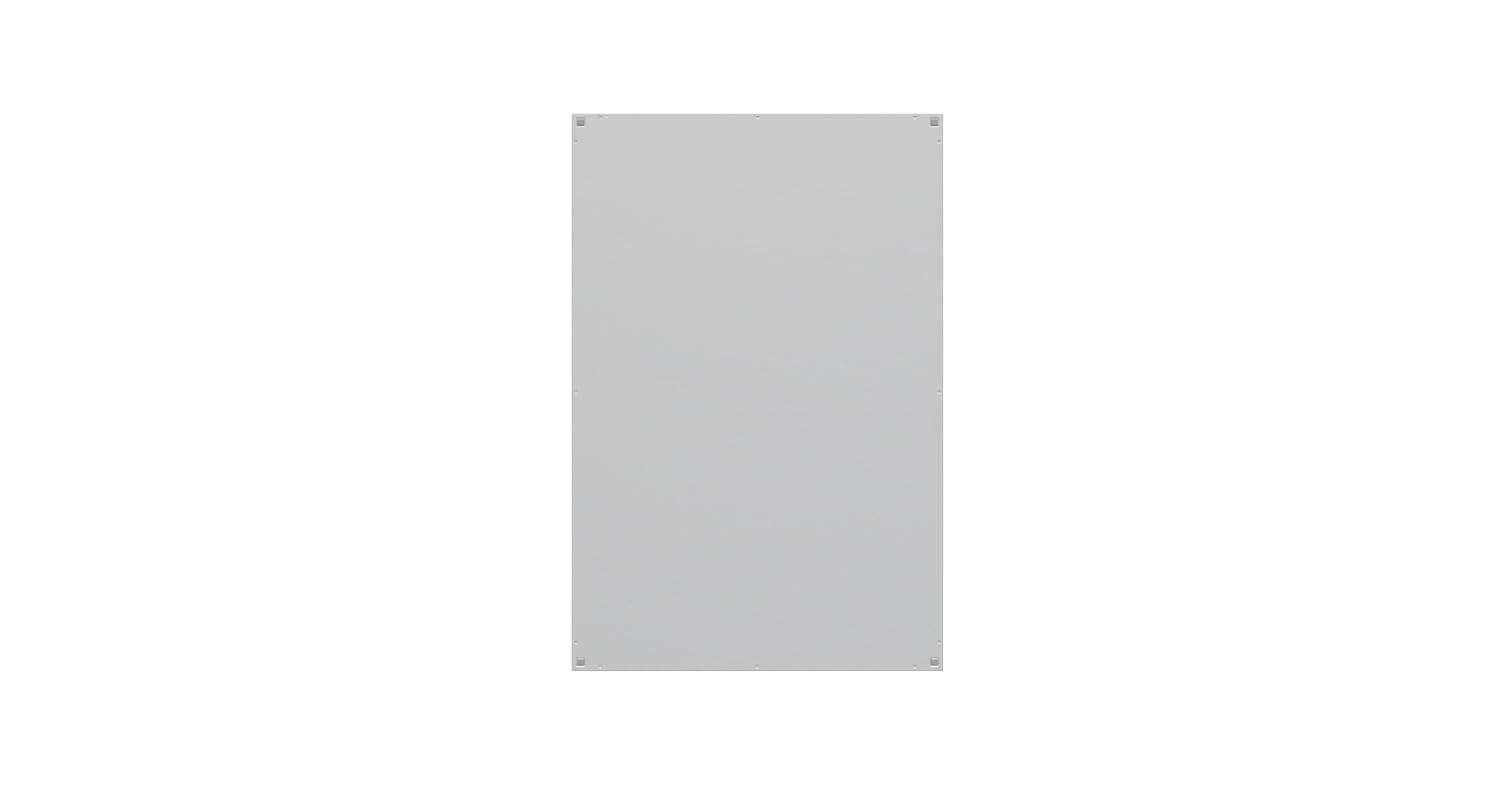

• 29.3" X 46.3" mounting plate
• Material thickness: 0.08" door, 0.06" enclosure & 0.1" mounting plate
• NEMA 1, 3R, 4, 12 protection
