SPECSTAR 110V 1/3 HP 4.5 CFM Single Stage Rotary Vane Air Vacuum Pump with Oil Bottle
Product details
| Management number | 230238278 | Release Date | 2026/06/18 | List Price | US$28.00 | Model Number | 230238278 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
<h3><strong>SPECSTAR Single Stage Rotary VaneAir Vacoam Pump</strong></h3> <h3><strong>Heavy-Duty & Portable & Convenient to Operate</strong></h3> <p>Are you still struggling to find a vacuum pump that meets your requirements? The SPECSTAR 4.5 CFM single-stage compact size air vacuum pump is easy for you to carry to where you need while the maximum vacuum is 37.5 MICRONS which can suit most situations. A good choice is waiting for you!</p> <p><strong>Low Noise</strong><br> Working volume does not exceed 65 dB.</p> <p><strong>Fast cooling</strong><br> Equipped with cooling fan and heat-dissipation mesh vent to effectively protect the machine.</p> <p><strong>Inlet Port & Exhaust Fitting</strong><br> Built with 14 SAE and 1/2 ACME which can fit different tubes.The exhaust fitting can effectively separate oil mist from the exhaust gas.</p> <p><strong>Visible oil window</strong><br> You can monitor the oil level and refill the vacuum pump in time.</p> <p><strong>Powerful cooper Motor</strong><br> Fast start-up,stable operation,and easy maintenance.</p> <p><strong>Die-Cast Aluminum Housing</strong><br> Heavy-duty aluminum housing ensures the durability of the pump.</p> <h3><strong>Specifications</strong></h3> <p>Voltage: 110V<br> Free Air Displacement: 4.5CFM（128L/min）<br> Ultimate Vacuum: 5 Pa<br> Intake Fitting: 1/4 &1/2 Flare<br> Oil Capacity: 0.35qt./330ml<br> Item Weight: 13.37 pounds<br> Product Dimensions: 10.9 x 4.7 x 8.5 inches</p> <h3><strong>Package Content</strong></h3> <p>1/3 HP 4.5 CFM Vacuum Pump x 1<br> Bottle of Oil x 1<br> Manual Instruction x 1</p>

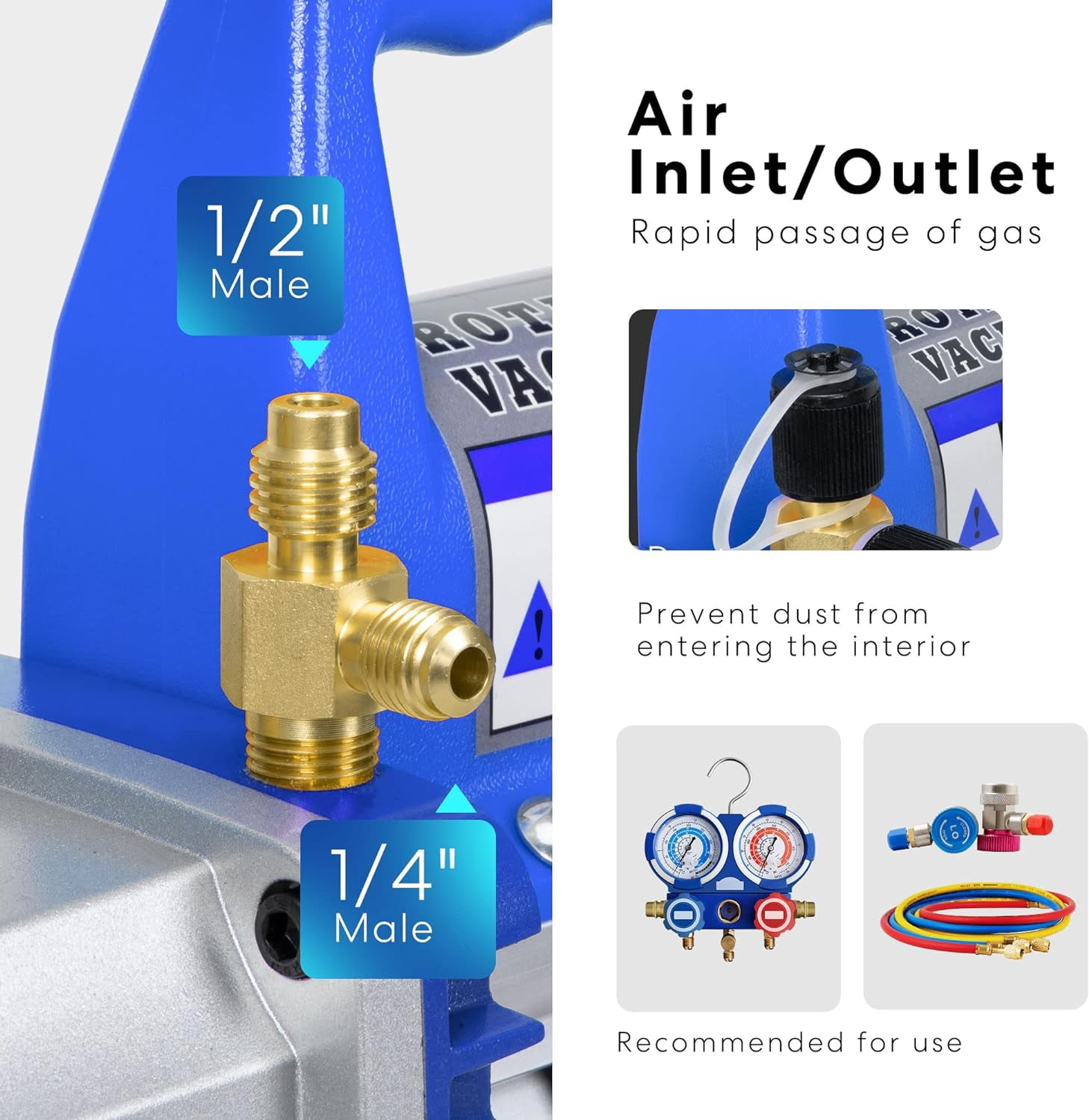

- SUITABLE FOR VARIOUS SYSTEMS - The SPECSTAR 4.5 CFM single-stage air vacuum pump is perfect for maintaining R134a, R12, R22, and R502 air conditioning systems; The machine is also suitable for R410a when equipped with a 5/16-inch adapter; The inlet filter is equipped with two different sizes of port, the upper one is 1/2 ACME and the lower one is 1/4 SAE

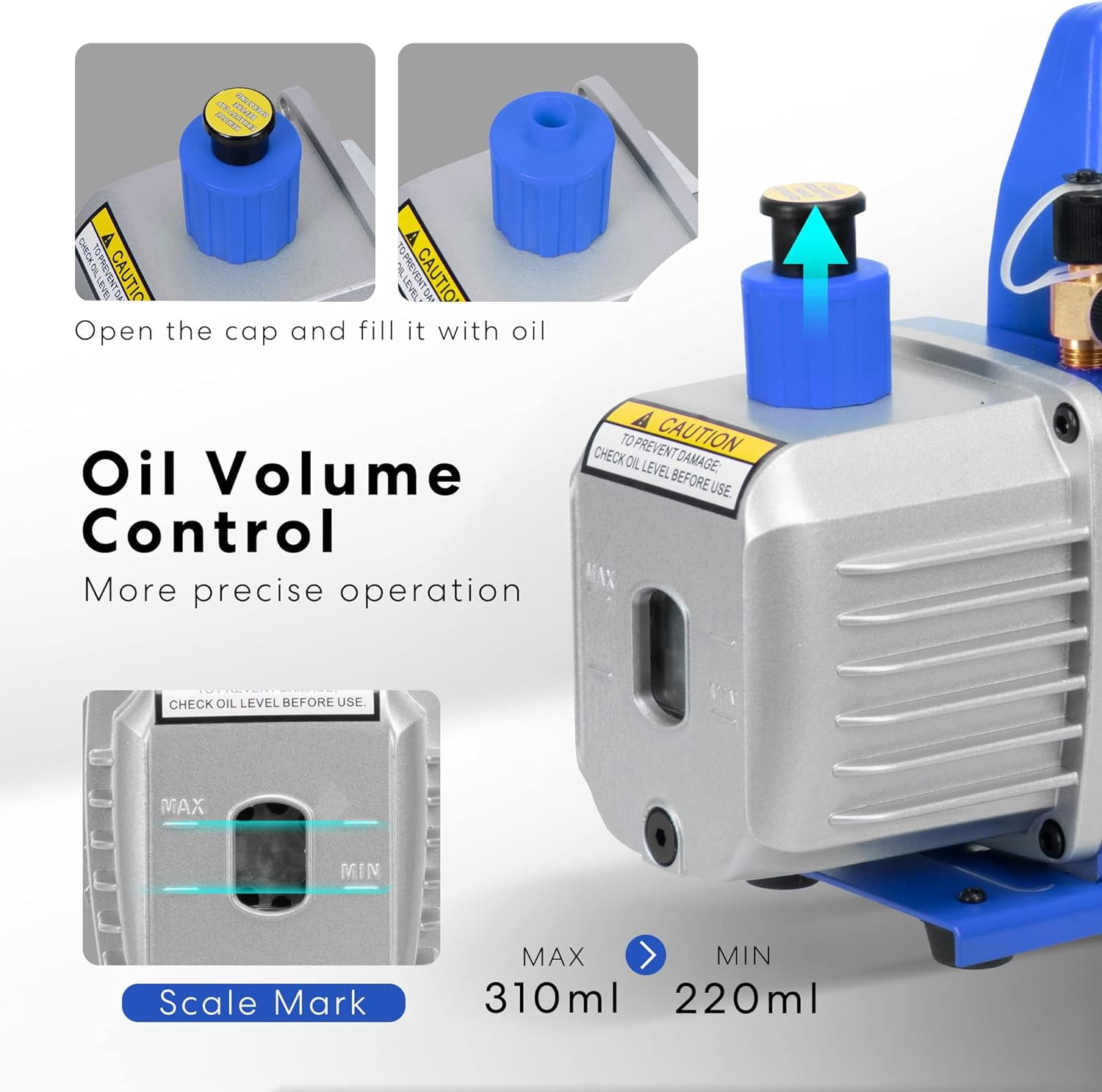

- EASY & QIUET OPERATION - The inlet and exhaust fittings of the SPECSTAR air vacuum pump is easy to connect, so you can operate it easily; The low noise design avoids disturbing other people while using this air vacuum pump, and the working volume is less than 65dB; Pull up the cap and pour oil cleanly and easily; The visible oil window is convenient for you to monitor the oil level to add oil duly; The oil drain valve in the bottom helps empty oil completely

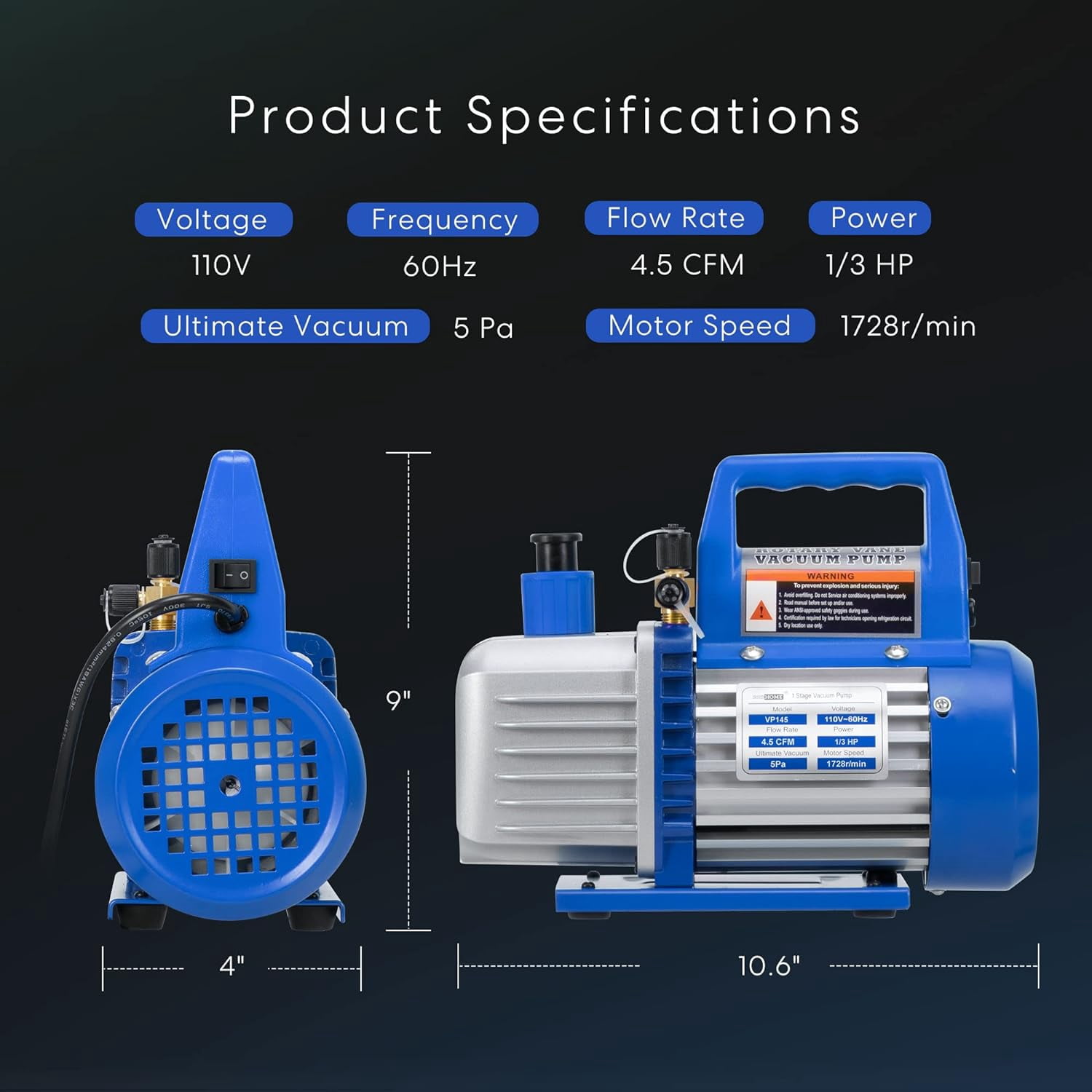

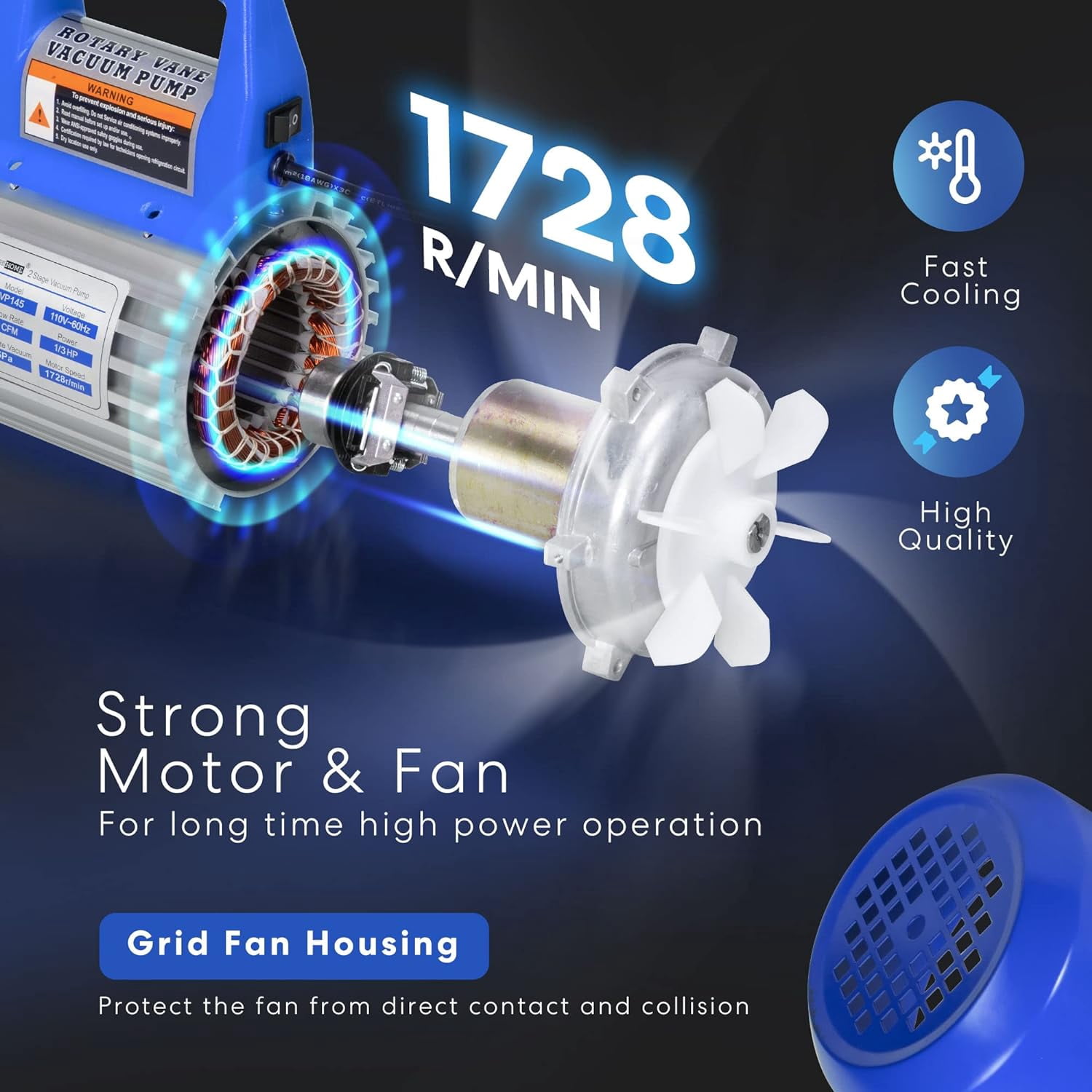

- POWERFUL PERFORMANCE - The SPECSTAR 4.5 CFM single-stage air vacuum pump is equipped with a 1/3 HP thermally protected motor and the ultimate vacuum is 5 Pa which equals 37.5 MICRONS; The inlet filter can effectively prevent impurities from entering the pump chamber and the trap can effectively separate the oil mist from the exhaust gas; the powerful performance can meet for most situations

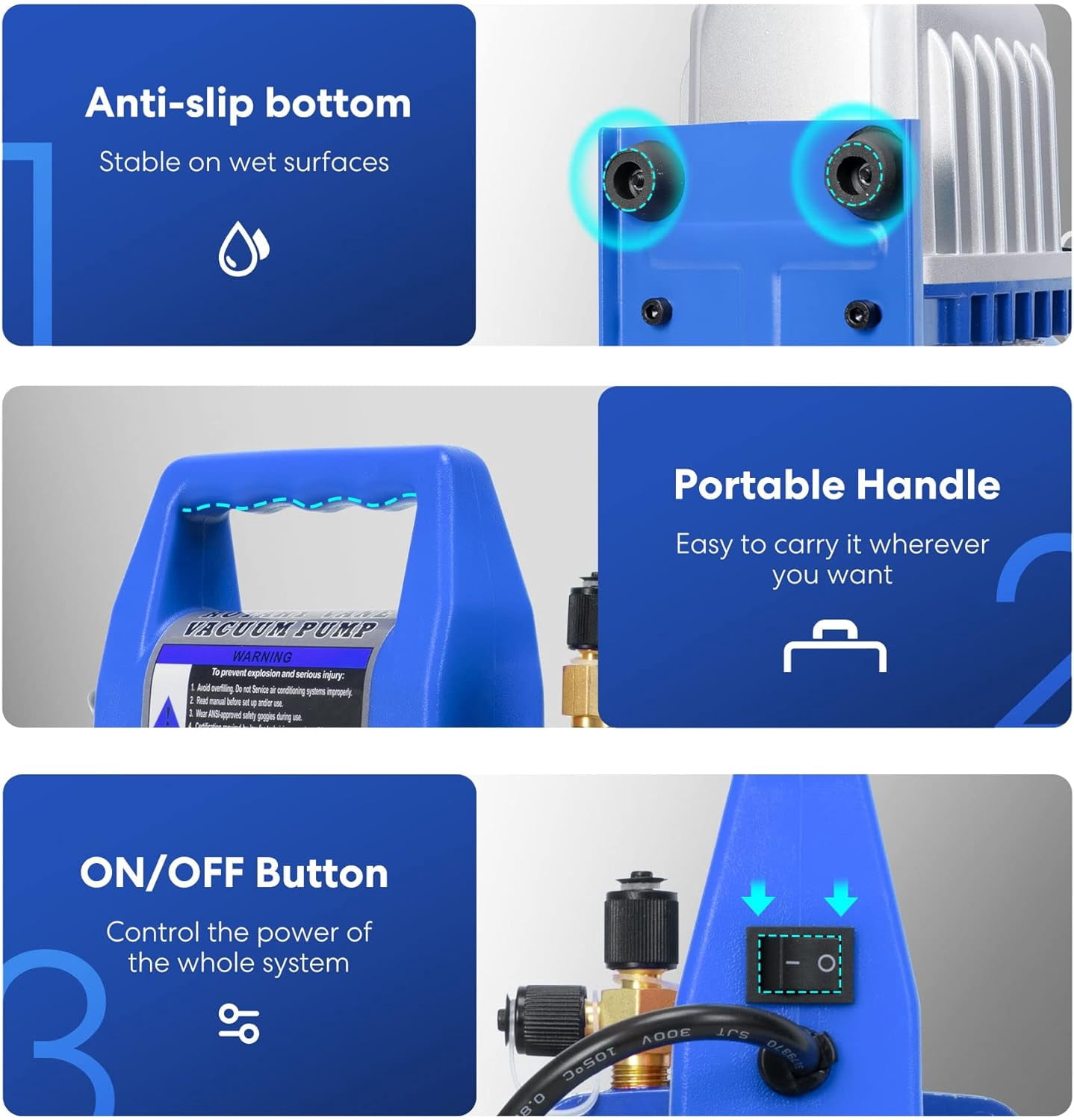

- DURABLE AND STURDY DESIGN - Die-cast aluminum housing, ergonomic grip handle, cold-rolled iron base, and four rubber bottoms ensure the air vacuum pump is robust and stable; Built-in high volume cooling fan and heat dissipation mash window can help extend the use time

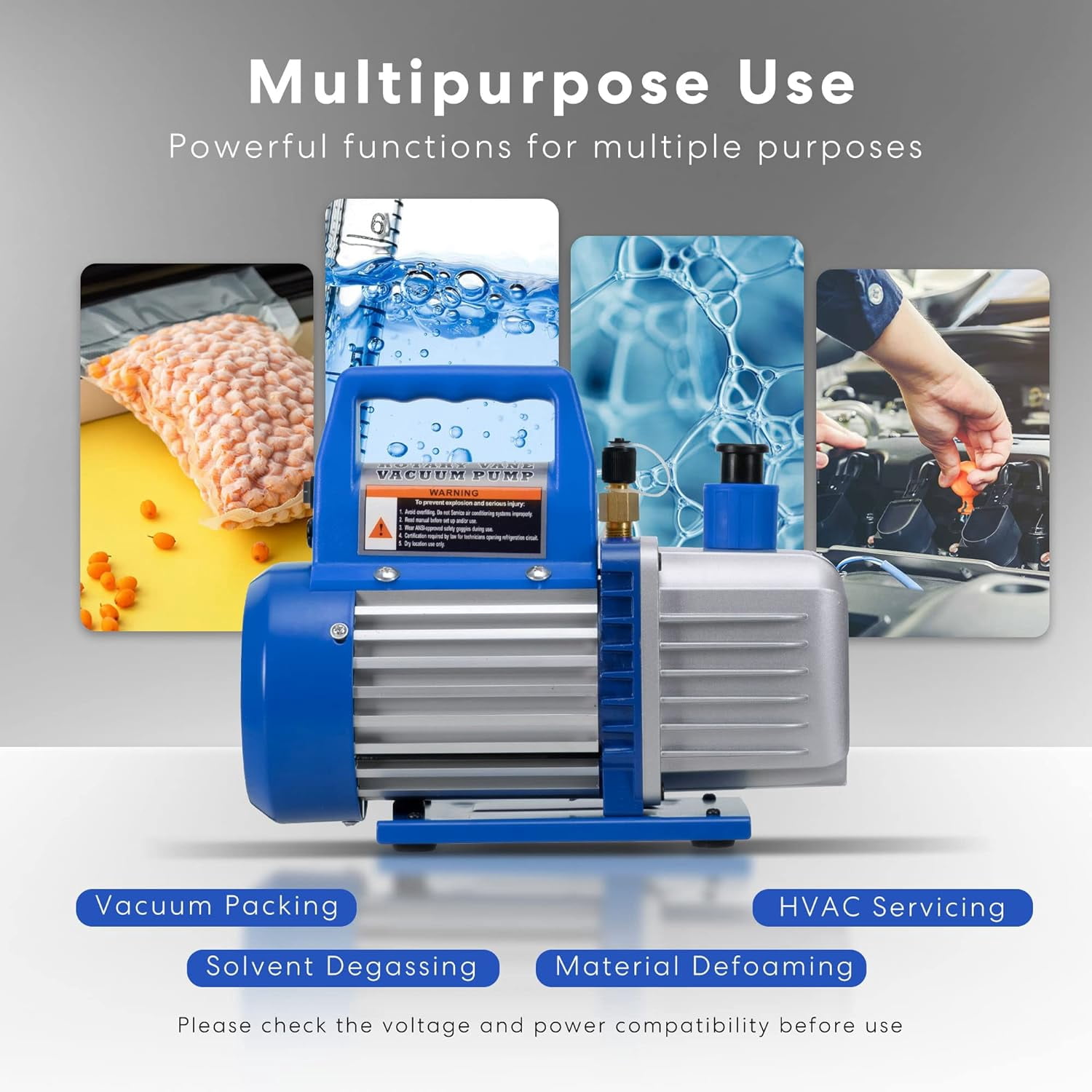

- PERFECT FOR DIFFERENT NEEDS - The SPECSTAR vacuum pump is widely used for both commercial and household applications; Ideal for automotive air conditioning, HVAC work, refrigeration vacuum packaging, wine degassing, thermoforming and other applications which industrial requirements that need high vacuum pull from a compact pump
| Size | 4.5CFM |
|---|---|
| Features | Adjustable |
| Material | aluminum |
| Color | Blue |
| Brand | SPECSTAR |
| Assembled Product Height | 8.5 in |
| Model | VH1130 |
| Manufacturer | SPECSTAR |
| Assembled Product Weight | 13.37 lb |
