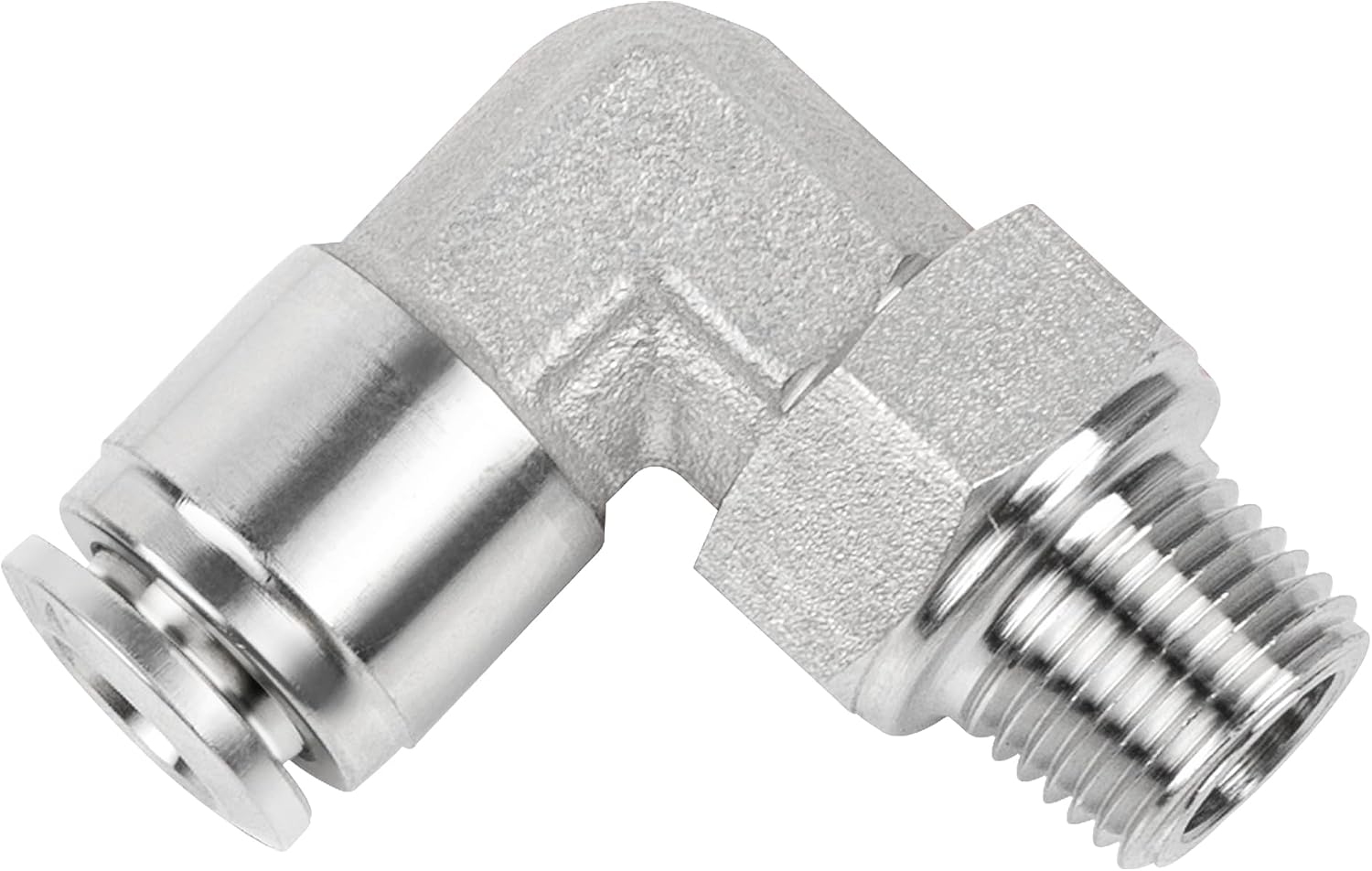

Yoebor 3/8" OD x 3/8" NPT Male Pneumatic Stainless Steel 304 90 Degree Elbow Push to Connect Tube Fitting 1pc

Material: Stainless Steel Shape:90-degree Male ElbowFluid Admitted: Air Pressure Range: 0 ~ 290 Psi Operating Temperature Range: -4～284°FAbout Installation: 1 .After the pipe is cut off, remove the burr and insert one end of the pipe into the socket of the joint (must be inserted into the bottom) to achieve a firm connection and sealing effect. 2 .After repeatedly pulling out the pipe. The worn part of the end should be cut off. Continue to use after leveling. 3.When disassembling the pipe, use your thumb to press the connector ferrule in and gently pull out the pipe. 4.After installation, you just need to rotate the joint body to adjust the direction of the pipe.

• Body Style: 90 Degree NPT Male Elbow Push-in Connect Fittings
• NPT Thread Size is a Nominal Pipe Size, and it Does Not represent the actual diameter.
• Made of 304 stainless steel whicn has corrosion resistance, can enhance the strength, not easy to break.
• Pressure Range: 0 ~ 290 Psi/0-2Mpa; Operating Temperature Range: -20℃～140℃/-4°F～284°F;
• Negative Pressure:-100Kpa | -29.5 In Hg; Applicable Tube:PU / PA / PE / PVC
